一、搭建nfs动态存储

1、 准备一台nfs服务器

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
# Step 1：创建数据目录
$ mkdir /data/k8s -p

# step 2：安装nfs
$ yum install -y nfs-utils

# step 3：授予数据目录权限
$ chomd 777 -R /data

# step 4：共享数据目录
$ cat >> /etc/exports << EOF
/data/k8s *(rw,sync,no_root_squash)
EOF

# step 5：启动NFS服务
$ systemctl enable --now nfs-server

# step 6：测试
$ showmount  -e 192.168.174.111
Export list for 192.168.174.111:
/data/k8s *

2、Kubernetes集群操作

nfs驱动下载地址：https://github.com/kubernetes-sigs/nfs-subdir-external-provisioner

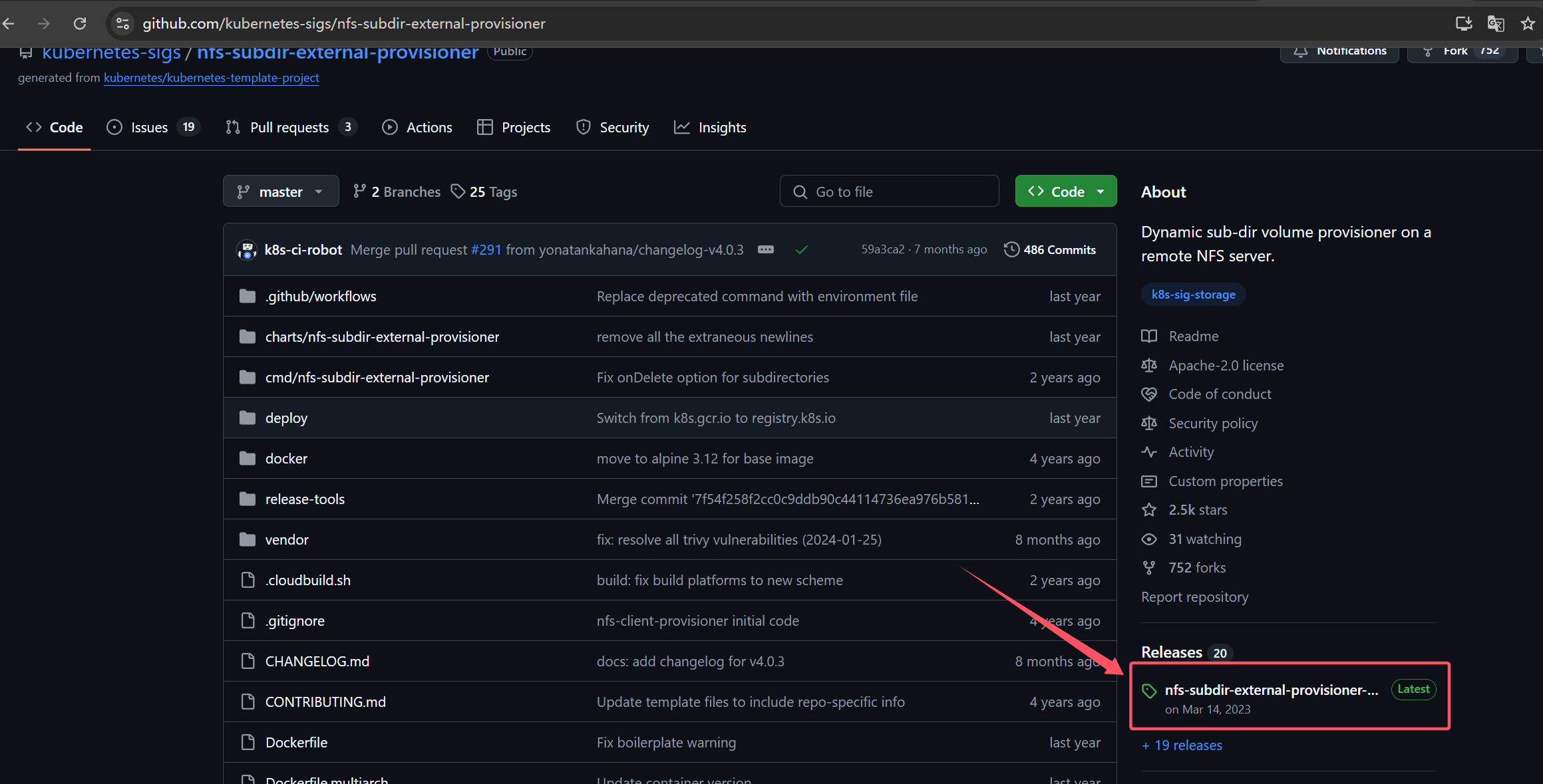

image-20240923145525063

1
2
3
4
5
6
7
8
9
10
11
12
13
14
# step 1：集群所有节点安装nfs-utils（所有节点）
$ yum install -y nfs-utils

# step 2：安装nfs驱动（k8s-master01操作）
$ wget https://github.com/kubernetes-sigs/nfs-subdir-external-provisioner/archive/refs/tags/nfs-subdir-external-provisioner-4.0.18.tar.gz

# step 3：解压压缩包（k8s-master01操作）
$ tar xf nfs-subdir-external-provisioner-4.0.18.tar.gz

# step 4：切换工作目录（k8s-master01操作）
$ cd nfs-subdir-external-provisioner-nfs-subdir-external-provisioner-4.0.18/deploy/

# step 5：修改镜像地址（k8s-master01操作）
$ vim deployment.yaml

image-20240923150950242

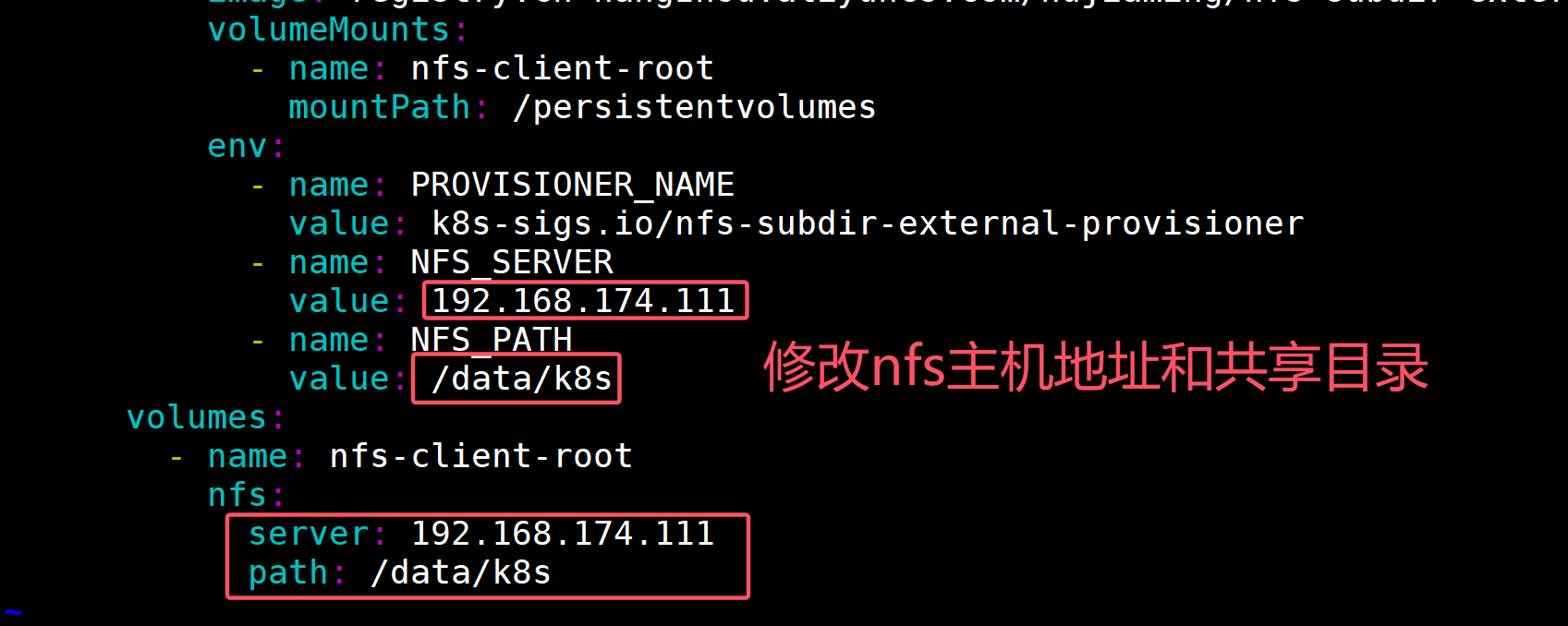

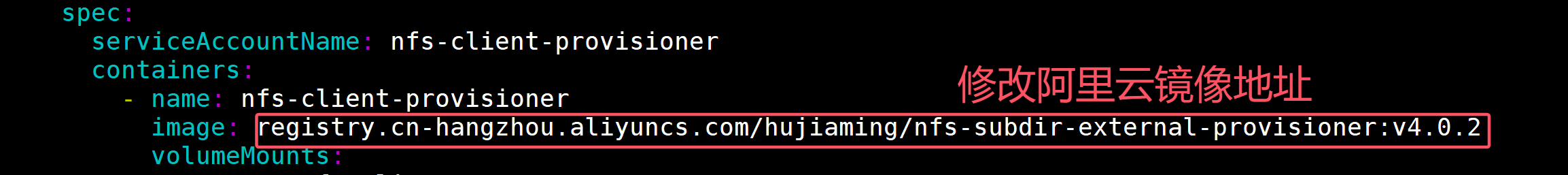

image-20240923151234342

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
# step 6：查看资源创建所处命名空间（k8s-master01操作）
yamls=$(grep -rl 'namespace: default' ./)
 for yaml in ${yamls}; do
  echo ${yaml}
  cat ${yaml} | grep 'namespace: default'
done

# setp 7：创建资源所处命名空间（k8s-master01操作）
$ kubectl create namespace nfs-provisioner --dry-run=client -oyaml > nfs-provisioner-ns.yaml
	# 资源清单内容如下：
---
apiVersion: v1
kind: Namespace
metadata:
  creationTimestamp: null
  name: nfs-provisioner
spec: {}
status: {}

# step 8：查看命名空间（k8s-master01操作）
$ kubectl get ns | grep nfs
nfs-provisioner        Active        39s

# step 9：替换资源创建默认命名空间（k8s-master01操作）
$ sed -i 's/namespace: default/namespace: nfs-provisioner/g' `grep -rl 'namespace: default' ./`

# step 10：查看是否修改（k8s-master01操作）
$ yamls=$(grep -rl 'namespace: nfs-provisioner' ./)
 for yaml in ${yamls}; do
  echo ${yaml}
  cat ${yaml} | grep 'namespace: nfs-provisioner'
done

# step 11：创建资源（k8s-master01操作）
$ kubectl create -k .
storageclass.storage.k8s.io/nfs-client created
serviceaccount/nfs-client-provisioner created
role.rbac.authorization.k8s.io/leader-locking-nfs-client-provisioner created
clusterrole.rbac.authorization.k8s.io/nfs-client-provisioner-runner created
rolebinding.rbac.authorization.k8s.io/leader-locking-nfs-client-provisioner created
clusterrolebinding.rbac.authorization.k8s.io/run-nfs-client-provisioner created
deployment.apps/nfs-client-provisioner created

# step 12：创建资源（k8s-master01操作）
$ kubectl get all  -n nfs-provisioner
NAME                                          READY   STATUS    RESTARTS   AGE
pod/nfs-client-provisioner-5844696d4f-8hd28   1/1     Running   0          96s

NAME                                     READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/nfs-client-provisioner   1/1     1            1           96s

NAME                                                DESIRED   CURRENT   READY   AGE
replicaset.apps/nfs-client-provisioner-5844696d4f   1         1         1       96s

# step 13：查看sc

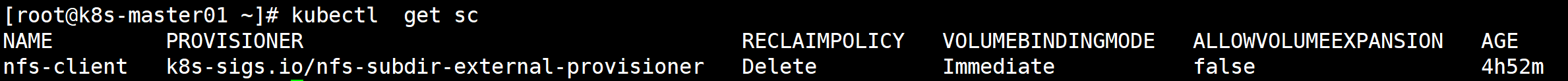

kubectl  get sc
NAME         PROVISIONER                                   RECLAIMPOLICY   VOLUMEBINDINGMODE   ALLOWVOLUMEEXPANSION   AGE
nfs-client   k8s-sigs.io/nfs-subdir-external-provisioner   Delete          Immediate           false                  2m58s
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
# step 14：测试使用动态存储（k8s-master01操作）,创建资源清单，内容如下
$ vim test-sc.yaml
---
apiVersion: v1
kind: Service
metadata:
  name: nginx
  labels:
    app: nginx
spec:
  ports:
  - port: 80
    name: nginx
  clusterIP: None
  selector:
    app: nginx
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: nginx
spec:
  selector:
    matchLabels:
      app: nginx
  serviceName: "nginx"
  replicas: 3 # 副本数
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: registry.cn-hangzhou.aliyuncs.com/hujiaming/nginx:1.26.0
        ports:
        - containerPort: 80
          name: nginx
        volumeMounts:
        - name: www
          mountPath: /tmp
  volumeClaimTemplates:
  - metadata:
      name: www
    spec:
      accessModes: [ "ReadWriteOnce" ]
      storageClassName: "nfs-client"
      resources:
        requests:
          storage: 1Gi
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

# step 15：创建资源
$ kubectl create -f test-sc.yaml

# step 16：查看资源
$ kubectl get po  -l app=nginx
NAME      READY   STATUS    RESTARTS   AGE
nginx-0   1/1     Running   0          3m19s
nginx-1   1/1     Running   0          2m55s
nginx-2   1/1     Running   0          2m30s

# step 17：查看pv和pvc
$ kubectl get pvc,pv
NAME                                STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   AGE
persistentvolumeclaim/www-nginx-0   Bound    pvc-9e6dda2a-272f-4378-bfce-89a6539ddb7a   1Gi        RWO            nfs-client     4m11s
persistentvolumeclaim/www-nginx-1   Bound    pvc-166f3ff2-5d9f-4dc2-9692-a652e81ee1fd   1Gi        RWO            nfs-client     3m47s
persistentvolumeclaim/www-nginx-2   Bound    pvc-7dd6504c-1a14-42fe-8d2f-3b563d9488f1   1Gi        RWO            nfs-client     3m22s

NAME                                                        CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM                 STORAGECLASS   REASON   AGE
persistentvolume/pvc-166f3ff2-5d9f-4dc2-9692-a652e81ee1fd   1Gi        RWO            Delete           Bound    default/www-nginx-1   nfs-client              3m47s
persistentvolume/pvc-7dd6504c-1a14-42fe-8d2f-3b563d9488f1   1Gi        RWO            Delete           Bound    default/www-nginx-2   nfs-client              3m21s
persistentvolume/pvc-9e6dda2a-272f-4378-bfce-89a6539ddb7a   1Gi        RWO            Delete           Bound    default/www-nginx-0   nfs-client              4m11s

提示：由于在sc资源清单中设置得默认得回收策略是delete，当删除pvc时自动删除pv。

1
2
3
4
5
6
7
8
# step 18：删除测试资源
$ kubectl delete -f test-sc.yaml

# step 19：删除pvc
$ kubectl delete pvc www-nginx-0  www-nginx-1 www-nginx-2
persistentvolumeclaim "www-nginx-0" deleted
persistentvolumeclaim "www-nginx-1" deleted
persistentvolumeclaim "www-nginx-2" deleted

至此nfs动态存储已经部署完成！

二、MySQL8.0一主两从集群容器化部署

1. 创建namespace

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
# step 1：创建namespace
$ kubectl create ns cloud --dry-run=client -oyaml > cloud-ns.yaml
	# 资源清单内容如下
---
apiVersion: v1
kind: Namespace
metadata:
  creationTimestamp: null
  name: cloud
spec: {}
status: {}

# step 2：创建资源
$ kubectl create -f cloud-ns.yaml
namespace/cloud created

# step 3：查看资源
$ kubectl  get ns | grep cloud
cloud                  Active        35s

2. 创建存放MySQL密码secret

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
# step 1：创建资源清单。注意修改root的密码和命名空间，我的root密码设置为的是root
$ kubectl create secret generic mysql-password --namespace=cloud --from-literal=mysql_root_password=root --dry-run=client -oyaml > mysqlpass-secret.yaml
	# 资源清单内容如下
---
apiVersion: v1
data:
  mysql_root_password: cm9vdA==
kind: Secret
metadata:
  creationTimestamp: null
  name: mysql-password
  namespace: cloud

# step 2：创建secret资源
$ kubectl create -f mysqlpass-secret.yaml
secret/mysql-password created

# step 3：查看secret资源
$ kubectl get secret  -n cloud
NAME                  TYPE                                  DATA   AGE
default-token-hb6pl   kubernetes.io/service-account-token   3      4m32s
mysql-password        Opaque                                1      12s

3. 创建MySQL-master节点configmap配置文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
# step 4：创建mysql-master配置文件
$ vim my.cnf
[mysqld]
skip-host-cache
skip-name-resolve
datadir          = /var/lib/mysql
socket           = /var/run/mysqld/mysqld.sock
secure-file-priv = /var/lib/mysql-files
pid-file         = /var/run/mysqld/mysqld.pid
user             = mysql
secure-file-priv = NULL
server-id        = 1
log-bin          = master-bin
log_bin_index    = master-bin.index
#binlog_do_db     = xiaohh_user
binlog_ignore_db = information_schema
binlog_ignore_db = mysql
binlog_ignore_db = performance_schema
binlog_ignore_db = sys
binlog-format    = ROW

[client]
socket           = /var/run/mysqld/mysqld.sock

!includedir /etc/mysql/conf.d/

# step 5：创建mysql-master配置文件configmap
$ kubectl create configmap mysql-master-cm -n cloud --from-file=my.cnf --dry-run=client -o yaml > mysqlmaster-confmap.yaml
	# 资源清单如下
---
apiVersion: v1
data:
  my.cnf: |
    [mysqld]
    skip-host-cache
    skip-name-resolve
    datadir          = /var/lib/mysql
    socket           = /var/run/mysqld/mysqld.sock
    secure-file-priv = /var/lib/mysql-files
    pid-file         = /var/run/mysqld/mysqld.pid
    user             = mysql
    secure-file-priv = NULL
    server-id        = 1
    log-bin          = master-bin
    log_bin_index    = master-bin.index
    binlog_ignore_db = information_schema
    binlog_ignore_db = mysql
    binlog_ignore_db = performance_schema
    binlog_ignore_db = sys
    binlog-format    = ROW

    [client]
    socket           = /var/run/mysqld/mysqld.sock

    !includedir /etc/mysql/conf.d/
kind: ConfigMap
metadata:
  creationTimestamp: null
  name: mysql-master-cm
  namespace: cloud

# step 6：创建资源
$ kubectl create -f mysqlmaster-confmap.yaml
configmap/mysql-master-cm created

# step 7：查看configmap资源
$ kubectl get cm -n cloud | grep mysql
mysql-master-cm    1      33s

4. 创建MySQL主节点

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
# step 8：创建mysql-master节点资源清单
$ vim mysql-master-sts.yaml
---
apiVersion: v1
kind: Service
metadata:
  name: deploy-mysql-master-svc
  namespace: cloud
  labels:
    app: mysql-master
spec:
  ports:
  - port: 3306
    name: mysql
    targetPort: 3306
    nodePort: 30306
  selector:
    app: mysql-master
  type: NodePort
  sessionAffinity: ClientIP

---
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: deploy-mysql-master
  namespace: cloud
spec:
  selector:
    matchLabels:
      app: mysql-master
  serviceName: "deploy-mysql-master-svc"
  replicas: 1
  template:
    metadata:
      labels:
        app: mysql-master
    spec:
      terminationGracePeriodSeconds: 10
      containers:
      - args:
        - --character-set-server=utf8mb4
        - --collation-server=utf8mb4_unicode_ci
        - --lower_case_table_names=1
        - --default-time_zone=+8:00
        name: mysql
        # image: docker.io/library/mysql:8.0.34
        image: registry.cn-hangzhou.aliyuncs.com/hujiaming/mysql:8.0.34
        ports:
        - containerPort: 3306
          name: mysql
        volumeMounts:
        - name: mysql-data
          mountPath: /var/lib/mysql
        - name: mysql-conf
          mountPath: /etc/my.cnf
          readOnly: true
          subPath: my.cnf
        env:
        - name: MYSQL_ROOT_PASSWORD
          valueFrom:
            secretKeyRef:
              key: mysql_root_password
              name: mysql-password
      volumes:
#      - name: mysql-data
#        persistentVolumeClaim:
#          claimName: deploy-mysql-master-nfs-pvc
      - name: mysql-conf
        configMap:
          name: mysql-master-cm
          items:
          - key: my.cnf
            mode: 0644
            path: my.cnf
  volumeClaimTemplates:
  - metadata:
      name: mysql-data
    spec:
      accessModes: [ "ReadWriteOnce" ]
      storageClassName: "nfs-client"
      resources:
        requests:
          storage: 1Gi

# step 9：创建MySQL-master pod
$ kubectl create -f mysql-master-sts.yaml
service/deploy-mysql-master-svc created
statefulset.apps/deploy-mysql-master created

# step 10：查看Pod
$ kubectl get po -n cloud
NAME                    READY   STATUS    RESTARTS   AGE
deploy-mysql-master-0   1/1     Running   0          56s

# step 11：查看pvc，pv
$ kubectl get pvc,pv -n cloud
NAME                                                     STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   AGE
persistentvolumeclaim/mysql-data-deploy-mysql-master-0   Bound    pvc-43325493-08a6-4aea-92db-491d7cf578d5   1Gi        RWO            nfs-client     2m

NAME                                                        CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM                                    STORAGECLASS   REASON   AGE
persistentvolume/pvc-43325493-08a6-4aea-92db-491d7cf578d5   1Gi        RWO            Delete           Bound    cloud/mysql-data-deploy-mysql-master-0   nfs-client              2m

5. nfs服务器查看挂载目录（nfs-server主机操作）

1
2
# step 12：查看挂载目录
$ cd /data/k8s/cloud-mysql-data-deploy-mysql-master-0-pvc-43325493-08a6-4aea-92db-491d7cf578d5/

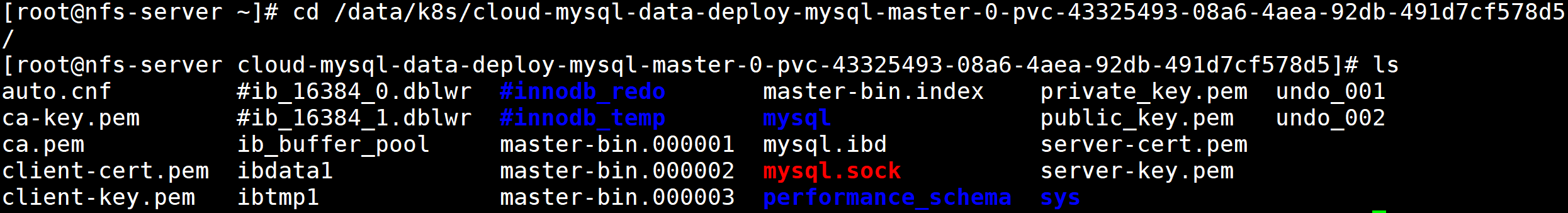

image-20240923163203493

6. 部署第一个mysql-slave节点

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
# step 13：创建mysql-slave01相关文件存放目录
$ mkdik mysql-slave01

# step 14：切换工作目录
$ cd mysql-slave01

# step 15：准备mysql-slave01节点configmap
$ vim my.cnf
[mysqld]
skip-host-cache
skip-name-resolve
datadir          = /var/lib/mysql
socket           = /var/run/mysqld/mysqld.sock
secure-file-priv = /var/lib/mysql-files
pid-file         = /var/run/mysqld/mysqld.pid
user             = mysql
secure-file-priv = NULL
server-id        = 2
log-bin          = slave-bin
relay-log        = slave-relay-bin
relay-log-index  = slave-relay-bin.index

[client]
socket           = /var/run/mysqld/mysqld.sock

!includedir /etc/mysql/conf.d/

# step 16：创建mysql-slave01资源清单
$ kubectl create configmap mysql-slave-01-cm -n cloud --from-file=my.cnf --dry-run=client -o yaml > mysql-slave-01-cm.yaml
	# 资源清单内容如下
---
apiVersion: v1
data:
  my.cnf: |
    [mysqld]
    skip-host-cache
    skip-name-resolve
    datadir          = /var/lib/mysql
    socket           = /var/run/mysqld/mysqld.sock
    secure-file-priv = /var/lib/mysql-files
    pid-file         = /var/run/mysqld/mysqld.pid
    user             = mysql
    secure-file-priv = NULL
    server-id        = 2
    log-bin          = slave-bin
    relay-log        = slave-relay-bin
    relay-log-index  = slave-relay-bin.index

    [client]
    socket           = /var/run/mysqld/mysqld.sock

    !includedir /etc/mysql/conf.d/
kind: ConfigMap
metadata:
  creationTimestamp: null
  name: mysql-slave-01-cm
  namespace: cloud

# step 17：创建mysql-slave01配置文件configmap
$ kubectl create -f mysql-slave-01-cm.yaml
configmap/mysql-slave-01-cm created

# step 18：查看configmap资源
$ kubectl get cm -n cloud
NAME                DATA   AGE
kube-root-ca.crt    1      33m
mysql-master-cm     1      24m
mysql-slave-01-cm   1      29s

7. 创建mysql-slave01节点

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
# step 19：配置mysql-slave01资源清单
$ vim mysql-slave01.yaml
---
apiVersion: v1
kind: Service
metadata:
  name: deploy-mysql-slave-svc
  namespace: cloud
  labels:
    app: mysql-slave
spec:
  ports:
  - port: 3306
    name: mysql
    targetPort: 3306
    nodePort: 30308
  selector:
    app: mysql-slave
  type: NodePort
  sessionAffinity: ClientIP

---
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: deploy-mysql-slave-01
  namespace: cloud
spec:
  selector:
    matchLabels:
      app: mysql-slave
  serviceName: "deploy-mysql-slave-svc"
  replicas: 1
  template:
    metadata:
      labels:
        app: mysql-slave
    spec:
      terminationGracePeriodSeconds: 10
      containers:
      - args:
        - --character-set-server=utf8mb4
        - --collation-server=utf8mb4_unicode_ci
        - --lower_case_table_names=1
        - --default-time_zone=+8:00
        name: mysql
        image: registry.cn-hangzhou.aliyuncs.com/hujiaming/mysql:8.0.34
        ports:
        - containerPort: 3306
          name: mysql
        volumeMounts:
        - name: mysql-slave01-data
          mountPath: /var/lib/mysql
        - name: mysql-conf
          mountPath: /etc/my.cnf
          readOnly: true
          subPath: my.cnf
        env:
        - name: MYSQL_ROOT_PASSWORD
          valueFrom:
            secretKeyRef:
              key: mysql_root_password
              name: mysql-password
      volumes:
#      - name: mysql-data
#        persistentVolumeClaim:
#          claimName: deploy-mysql-slave-01-nfs-pvc
      - name: mysql-conf
        configMap:
          name: mysql-slave-01-cm
          items:
          - key: my.cnf
            mode: 0644
            path: my.cnf
  volumeClaimTemplates:
  - metadata:
      name: mysql-slave01-data
    spec:
      accessModes: [ "ReadWriteOnce" ]
      storageClassName: "nfs-client"
      resources:
        requests:
          storage: 1Gi

# step 20：创建mysql-slave01 pod
$ kubectl get -f mysql-slave01.yaml
NAME                             TYPE       CLUSTER-IP      EXTERNAL-IP   PORT(S)          AGE
service/deploy-mysql-slave-svc   NodePort   10.96.253.198   <none>        3306:30308/TCP   3m36s

NAME                                     READY   AGE
statefulset.apps/deploy-mysql-slave-01   1/1     3m36s

8. 查看nfs挂载目录数据（nfs-server节点查看）

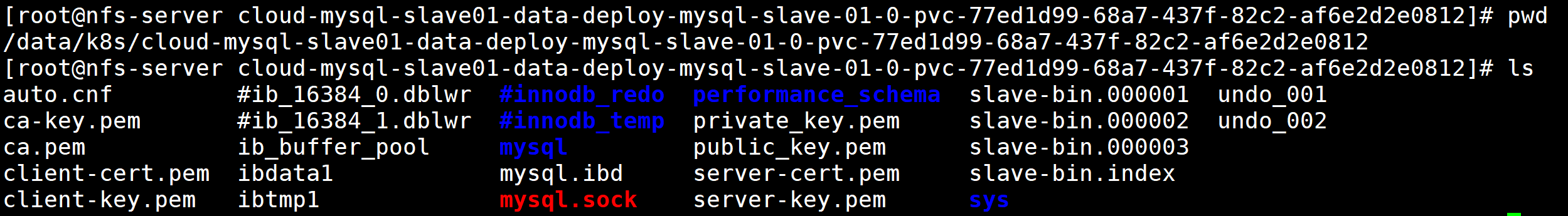

image-20240923164959890

9. 部署第二个mysql-slave02节点

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
# step 21：创建工作目录
$ cd /root/ && mkdir mysql-slave02 && cd mysql-slave02

# step 22：编写mysql-slave02 my.cnf配置文件
$ vim my.cnf
[mysqld]
skip-host-cache
skip-name-resolve
datadir          = /var/lib/mysql
socket           = /var/run/mysqld/mysqld.sock
secure-file-priv = /var/lib/mysql-files
pid-file         = /var/run/mysqld/mysqld.pid
user             = mysql
secure-file-priv = NULL
server-id        = 3
log-bin          = slave-bin
relay-log        = slave-relay-bin
relay-log-index  = slave-relay-bin.index

[client]
socket           = /var/run/mysqld/mysqld.sock

!includedir /etc/mysql/conf.d/

# step 22：创建mysql-slave02 configmap资源清单
$ kubectl create configmap mysql-slave-02-cm -n cloud --from-file=my.cnf --dry-run=client -o yaml > mysql-slave02-cm.yaml
	# 资源清单内容如下
---
apiVersion: v1
data:
  my.cnf: |
    [mysqld]
    skip-host-cache
    skip-name-resolve
    datadir          = /var/lib/mysql
    socket           = /var/run/mysqld/mysqld.sock
    secure-file-priv = /var/lib/mysql-files
    pid-file         = /var/run/mysqld/mysqld.pid
    user             = mysql
    secure-file-priv = NULL
    server-id        = 3
    log-bin          = slave-bin
    relay-log        = slave-relay-bin
    relay-log-index  = slave-relay-bin.index

    [client]
    socket           = /var/run/mysqld/mysqld.sock

    !includedir /etc/mysql/conf.d/
kind: ConfigMap
metadata:
  creationTimestamp: null
  name: mysql-slave-02-cm
  namespace: cloud

# step 23：创建mysql-slave02 配置文件configmap
$ kubectl create -f mysql-slave02-cm.yaml
configmap/mysql-slave-02-cm created

# step 24：查看资源
$ kubectl get cm -n cloud
NAME                DATA   AGE
kube-root-ca.crt    1      57m
mysql-master-cm     1      47m
mysql-slave-01-cm   1      24m
mysql-slave-02-cm   1      36s

10. 创建mysql-slave02节点

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
# step 25：创建mysql-slave02资源清单
$ mysql-slave02-sts.yaml
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: deploy-mysql-slave-02
  namespace: cloud
spec:
  selector:
    matchLabels:
      app: mysql-slave-02
  serviceName: "deploy-mysql-slave-svc"
  replicas: 1
  template:
    metadata:
      labels:
        app: mysql-slave-02
    spec:
      terminationGracePeriodSeconds: 10
      containers:
      - args:
        - --character-set-server=utf8mb4
        - --collation-server=utf8mb4_unicode_ci
        - --lower_case_table_names=1
        - --default-time_zone=+8:00
        name: mysql
        image: registry.cn-hangzhou.aliyuncs.com/hujiaming/mysql:8.0.34
        ports:
        - containerPort: 3306
          name: mysql
        volumeMounts:
        - name: mysql-slave02-data
          mountPath: /var/lib/mysql
        - name: mysql-conf
          mountPath: /etc/my.cnf
          readOnly: true
          subPath: my.cnf
        env:
        - name: MYSQL_ROOT_PASSWORD
          valueFrom:
            secretKeyRef:
              key: mysql_root_password
              name: mysql-password
      volumes:
#      - name: mysql-data
#        persistentVolumeClaim:
#          claimName: deploy-mysql-slave-02-nfs-pvc
      - name: mysql-conf
        configMap:
          name: mysql-slave-02-cm
          items:
          - key: my.cnf
            mode: 0644
            path: my.cnf
  volumeClaimTemplates:
  - metadata:
      name: mysql-slave02-data
    spec:
      accessModes: [ "ReadWriteOnce" ]
      storageClassName: "nfs-client"
      resources:
        requests:
          storage: 1Gi

# step 26：创建Pod
$ kubectl create -f mysql-slave02-sts.yaml
statefulset.apps/deploy-mysql-slave-02 created

# step 27：查看Pod
$ kubectl  get po -n cloud
NAME                      READY   STATUS    RESTARTS   AGE
deploy-mysql-master-0     1/1     Running   0          43m
deploy-mysql-slave-01-0   1/1     Running   0          24m
deploy-mysql-slave-02-0   1/1     Running   0          94s

11. 三台MySQL组成集群

11.1 查看主节点状态信息

1
2
3
4
5
6
7
# step 1：进入MySQL主节点容器
$ kubectl exec -it deploy-mysql-master-0 -n cloud  -- bash
	# step 1.1：登录mysql
bash-4.4# mysql -uroot -proot

	# step 1.2：查看master状态
mysql> show master status;

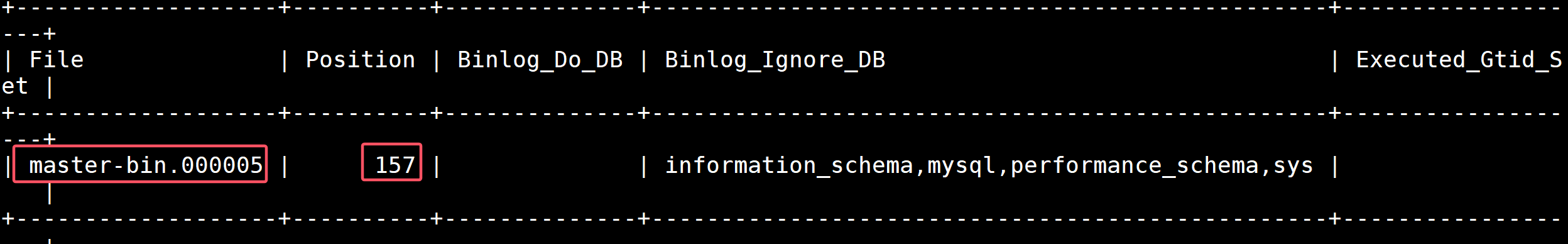

image-20240923194018366

11.2 两台mysql-slave节点连接master节点

1
change master to master_host='deploy-mysql-master-0.deploy-mysql-master-svc.cloud.svc.cluster.local', master_port=3306, master_user='root', master_password='root', master_log_file='master-bin.000003', master_log_pos=157, master_connect_retry=30, get_master_public_key=1;

命令参数如下：

  • master_host: 这个参数是master的地址，kubernetes提供的解析规则是pod名称.service名称.命名空间.svc.cluster.local。
  • master_port: 主节点的mysql端口，我们没改默认是3306。
  • master_user: 登录到主节点的mysql用户。
  • master_password: 登录到主节点要用到的密码。
  • master_log_file: 我们之前查看mysql主节点状态时候的 File 字段。
  • master_log_pos: 我们之前查看mysql主节点状态时候的 Position 字段。
  • master_connect_retry: 主节点重连时间。
  • get_master_public_key: 连接主mysql的公钥获取方式。

11.3 mysql-slave01执行命令连接master容器

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
# step 2：进入mysql-slave01容器中
$ kubectl get po -n cloud
NAME                      READY   STATUS    RESTARTS   AGE
deploy-mysql-master-0     1/1     Running   0          55m
deploy-mysql-slave-01-0   1/1     Running   0          37m
deploy-mysql-slave-02-0   1/1     Running   0          14m
$ kubectl exec -it deploy-mysql-slave-01-0  -n cloud -- bash

# step 3：连接数据库
bash-4.4# mysql -uroot -proot

# step 4：连接MySQL-master Pod
mysql> change master to master_host='deploy-mysql-master-0.deploy-mysql-master-svc.cloud.svc.cluster.local', master_port=3306, master_user='root', master_password='root', master_log_file='master-bin.000005', master_log_pos=157, master_connect_retry=30, get_master_public_key=1;
Query OK, 0 rows affected, 11 warnings (0.12 sec)

# step 5：启动slave01
mysql> start slave;
Query OK, 0 rows affected, 1 warning (0.03 sec)

# step 6： 查看主从连接状态
mysql> show slave status\G
*************************** 1. row ***************************
               Slave_IO_State: Waiting for source to send event
                  Master_Host: deploy-mysql-master-0.deploy-mysql-master-svc.cloud.svc.cluster.local
                  Master_User: root
                  Master_Port: 3306
                Connect_Retry: 30
              Master_Log_File: master-bin.000003
          Read_Master_Log_Pos: 157
               Relay_Log_File: slave-relay-bin.000002
                Relay_Log_Pos: 327
        Relay_Master_Log_File: master-bin.000003
             Slave_IO_Running: Yes
            Slave_SQL_Running: Yes
              Replicate_Do_DB:
          Replicate_Ignore_DB:
           Replicate_Do_Table:
       Replicate_Ignore_Table:
      Replicate_Wild_Do_Table:
  Replicate_Wild_Ignore_Table:
                   Last_Errno: 0
                   Last_Error:
                 Skip_Counter: 0
          Exec_Master_Log_Pos: 157
              Relay_Log_Space: 537
              Until_Condition: None
               Until_Log_File:
                Until_Log_Pos: 0
           Master_SSL_Allowed: No
           Master_SSL_CA_File:
           Master_SSL_CA_Path:
              Master_SSL_Cert:
            Master_SSL_Cipher:
               Master_SSL_Key:
        Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: No
                Last_IO_Errno: 0
                Last_IO_Error:
               Last_SQL_Errno: 0
               Last_SQL_Error:
  Replicate_Ignore_Server_Ids:
             Master_Server_Id: 1
                  Master_UUID: 9f372890-7985-11ef-8931-7a8c0cecaa4a
             Master_Info_File: mysql.slave_master_info
                    SQL_Delay: 0
          SQL_Remaining_Delay: NULL
      Slave_SQL_Running_State: Replica has read all relay log; waiting for more updates
           Master_Retry_Count: 86400
                  Master_Bind:
      Last_IO_Error_Timestamp:
     Last_SQL_Error_Timestamp:
               Master_SSL_Crl:
           Master_SSL_Crlpath:
           Retrieved_Gtid_Set:
            Executed_Gtid_Set:
                Auto_Position: 0
         Replicate_Rewrite_DB:
                 Channel_Name:
           Master_TLS_Version:
       Master_public_key_path:
        Get_master_public_key: 1
            Network_Namespace:
1 row in set, 1 warning (0.00 sec)

11.4 mysql-slave02执行命令连接mater容器

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
# step 7：进入mysql-slave02容器
$ kubectl  get po -n cloud
NAME                      READY   STATUS    RESTARTS   AGE
deploy-mysql-master-0     1/1     Running   0          66m
deploy-mysql-slave-01-0   1/1     Running   0          48m
deploy-mysql-slave-02-0   1/1     Running   0          24m
$ kubectl exec -it deploy-mysql-slave-02-0 -n cloud -- bash

# step 8：连接数据库
$ bash-4.4# mysql -uroot -proot

# step 9：连接MySQL-master Pod
mysql> change master to master_host='deploy-mysql-master-0.deploy-mysql-master-svc.cloud.svc.cluster.local', master_port=3306, master_user='root', master_password='root', master_log_file='master-bin.000005', master_log_pos=157, master_connect_retry=30, get_master_public_key=1;
Query OK, 0 rows affected, 11 warnings (0.12 sec)

# step 10：启动slave01
mysql> start slave;
Query OK, 0 rows affected, 1 warning (0.03 sec)

# step 11： 查看主从连接状态
mysql> show slave status\G
*************************** 1. row ***************************
               Slave_IO_State: Waiting for source to send event
                  Master_Host: deploy-mysql-master-0.deploy-mysql-master-svc.cloud.svc.cluster.local
                  Master_User: root
                  Master_Port: 3306
                Connect_Retry: 30
              Master_Log_File: master-bin.000003
          Read_Master_Log_Pos: 157
               Relay_Log_File: slave-relay-bin.000002
                Relay_Log_Pos: 327
        Relay_Master_Log_File: master-bin.000003
             Slave_IO_Running: Yes
            Slave_SQL_Running: Yes
              Replicate_Do_DB:
          Replicate_Ignore_DB:
           Replicate_Do_Table:
       Replicate_Ignore_Table:
      Replicate_Wild_Do_Table:
  Replicate_Wild_Ignore_Table:
                   Last_Errno: 0
                   Last_Error:
                 Skip_Counter: 0
          Exec_Master_Log_Pos: 157
              Relay_Log_Space: 537
              Until_Condition: None
               Until_Log_File:
                Until_Log_Pos: 0
           Master_SSL_Allowed: No
           Master_SSL_CA_File:
           Master_SSL_CA_Path:
              Master_SSL_Cert:
            Master_SSL_Cipher:
               Master_SSL_Key:
        Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: No
                Last_IO_Errno: 0
                Last_IO_Error:
               Last_SQL_Errno: 0
               Last_SQL_Error:
  Replicate_Ignore_Server_Ids:
             Master_Server_Id: 1
                  Master_UUID: 9f372890-7985-11ef-8931-7a8c0cecaa4a
             Master_Info_File: mysql.slave_master_info
                    SQL_Delay: 0
          SQL_Remaining_Delay: NULL
      Slave_SQL_Running_State: Replica has read all relay log; waiting for more updates
           Master_Retry_Count: 86400
                  Master_Bind:
      Last_IO_Error_Timestamp:
     Last_SQL_Error_Timestamp:
               Master_SSL_Crl:
           Master_SSL_Crlpath:
           Retrieved_Gtid_Set:
            Executed_Gtid_Set:
                Auto_Position: 0
         Replicate_Rewrite_DB:
                 Channel_Name:
           Master_TLS_Version:
       Master_public_key_path:
        Get_master_public_key: 1
            Network_Namespace:
1 row in set, 1 warning (0.00 sec)

12. 测试MySQL主从集群

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
# step 1：进入MySQL-master容器
$ kubectl get po -n cloud
NAME                      READY   STATUS    RESTARTS   AGE
deploy-mysql-master-0     1/1     Running   0          69m
deploy-mysql-slave-01-0   1/1     Running   0          51m
deploy-mysql-slave-02-0   1/1     Running   0          28m
$ kubectl  exec -it deploy-mysql-master-0 -n cloud -- bash

# step 2：登录数据库
bash-4.4# mysql -uroot -proot

# step 3：创建测试库、测试表
mysql> CREATE DATABASE `cloud`;

mysql> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| mysql              |
| performance_schema |
| sys                |
| cloud        |
+--------------------+
5 rows in set (0.00 sec)


# step 4：从库查看数据是否同步，进入mysql-slave
$ kubectl get po -n cloud
NAME                      READY   STATUS    RESTARTS   AGE
deploy-mysql-master-0     1/1     Running   0          74m
deploy-mysql-slave-01-0   1/1     Running   0          56m
deploy-mysql-slave-02-0   1/1     Running   0          32m

$ kubectl exec -it deploy-mysql-slave-01-0 -n cloud -- bash

# step 5：进入数据库
bash-4.4# mysql -uroot -proot

# step 6：查看数据是否同步
mysql> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| mysql              |
| performance_schema |
| sys                |
| cloud        |
+--------------------+
5 rows in set (0.00 sec)

三、Redis三主三从cluster集群部署

1. redis cluster集群初始化

1
2
# step 1：查看当前启动sc
$ kubectl  get sc

image-20240923201733806

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
# step 2：编写redis配置文件
$ vim redis.conf
# 关闭保护模式
protected-mode no

# 日志级别
loglevel warning

# 日志存放目录
logfile "/data/redis.log"

# 数据文件目录
dir /data
dbfilename dump.rdb

# 数据库数量
databases 16

# 保存数据库到数据文件
save 900 1
save 300 10
save 60 10000

# 集群相关配置
cluster-enabled yes
cluster-config-file nodes-6379.conf
cluster-node-timeout 15000
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
# setp 3：创建redis配置文件cofigmap
$ kubectl create configmap redis-cluster-config --from-file=redis.conf -n cloud --dry-run=client -o yaml > redis-conf-cm.yaml
	# 资源清单内容如下
---
apiVersion: v1
data:
  redis.conf: |+
    # 关闭保护模式
    protected-mode no

    # 日志级别
    loglevel warning

    # 日志存放目录
    logfile "/data/redis.log"

    # 数据文件目录
    dir /data
    dbfilename dump.rdb

    # 数据库数量
    databases 16

    # 保存数据库到数据文件
    save 900 1
    save 300 10
    save 60 10000

    # 集群相关配置
    cluster-enabled yes
    cluster-config-file nodes-6379.conf
    cluster-node-timeout 15000

kind: ConfigMap
metadata:
  creationTimestamp: null
  name: redis-cluster-config
  namespace: cloud

# step 4：创建confimap
$ kubectl create -f redis-conf-cm.yaml
configmap/redis-cluster-config created

# step 5：查看资源
$ kubectl  get cm -n cloud
NAME                   DATA   AGE
kube-root-ca.crt       1      4h18m
mysql-master-cm        1      4h8m
mysql-slave-01-cm      1      3h44m
mysql-slave-02-cm      1      3h20m
redis-cluster-config   1      42s
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
# step 6：创建redis集群Pod
$ vim redis-cluster.yaml
---
apiVersion: v1
kind: Service
metadata:
  name: deploy-redis-svc
  namespace: cloud
  labels:
    app: redis
spec:
  ports:
  - port: 6379
    name: redis
    targetPort: 6379
    nodePort: 30379
  selector:
    app: redis
  type: NodePort
  sessionAffinity: ClientIP

---
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: deploy-redis
  namespace: cloud
spec:
  selector:
    matchLabels:
      app: redis
  # 引用上面定义的Service
  serviceName: "deploy-redis-svc"
  # 注意这里部署六个节点，按照本篇文章的逻辑最好不要修改
  replicas: 6
  template:
    metadata:
      labels:
        app: redis
    spec:
      terminationGracePeriodSeconds: 10
      containers:
      - command:
      	# 这里指定使用那个配置文件启动redis-server
        - "redis-server"
        - "/usr/local/etc/redis.conf"
        name: redis
        # 因为redis6集群对域名支持不好，并且Kubernetes是需要通过域名连接各个pod的，所以我们采用redis7来完成这次部署
        # 如果你能拉取到DockerHub上的镜像那么你就使用这个
        # image: docker.io/library/redis:7.0.12
        # 如果你拉取不到，那么就使用我拉取并推送到国内阿里云的镜像
        image: registry.cn-shenzhen.aliyuncs.com/xiaohh-docker/redis:7.0.12
        ports:
        - containerPort: 6379
          name: redis
        volumeMounts:
        # 挂载redis的数据卷，使用的是我在下面声明的存储类模版
        - name: redis-data
          mountPath: /data
        # 挂载redis的配置文件
        - name: redis-config
          mountPath: /usr/local/etc
          readOnly: true
      volumes:
      # 读取configmap，获取redis的配置文件，方便上面挂载这个配置文件
      - name: redis-config
        configMap:
          name: redis-cluster-config
          items:
          - key: redis.conf
            path: redis.conf
  # 定义存储类模版
  volumeClaimTemplates:
  - metadata:
      name: redis-data # 这个名字要与上面的对应
    spec:
      accessModes:
      - ReadWriteMany # 设置多节点读写模式
      resources:
        requests:
          storage: 1Gi # 申请1个g的存储空间，可根据自己的服务器空间修改
      storageClassName: nfs-client # 这里填写你存储类的名字

# step 7：创建资源
$ kubectl create -f redis-cluster.yaml
service/deploy-redis-svc created
statefulset.apps/deploy-redis created

# step 8：查看资源
$  kubectl  get po -n cloud  -l app=redis
NAME             READY   STATUS    RESTARTS   AGE
deploy-redis-0   1/1     Running   0          7m51s
deploy-redis-1   1/1     Running   0          5m50s
deploy-redis-2   1/1     Running   0          2m
deploy-redis-3   1/1     Running   0          96s
deploy-redis-4   1/1     Running   0          91s
deploy-redis-5   1/1     Running   0          68s

2. redis cluster集群组建

1
2
3
4
5
6
7
8
9
10
11
# step 1：进入redis-0 Pod中
$ kubectl  exec -it deploy-redis-0 -n cloud -- bash

# step 2：redis-0 Pod中执行集群组建
root@deploy-redis-0:/data# redis-cli --cluster create --cluster-replicas 1 \
deploy-redis-0.deploy-redis-svc.cloud.svc.cluster.local:6379 \
deploy-redis-1.deploy-redis-svc.cloud.svc.cluster.local:6379 \
deploy-redis-2.deploy-redis-svc.cloud.svc.cluster.local:6379 \
deploy-redis-3.deploy-redis-svc.cloud.svc.cluster.local:6379 \
deploy-redis-4.deploy-redis-svc.cloud.svc.cluster.local:6379 \
deploy-redis-5.deploy-redis-svc.cloud.svc.cluster.local:6379

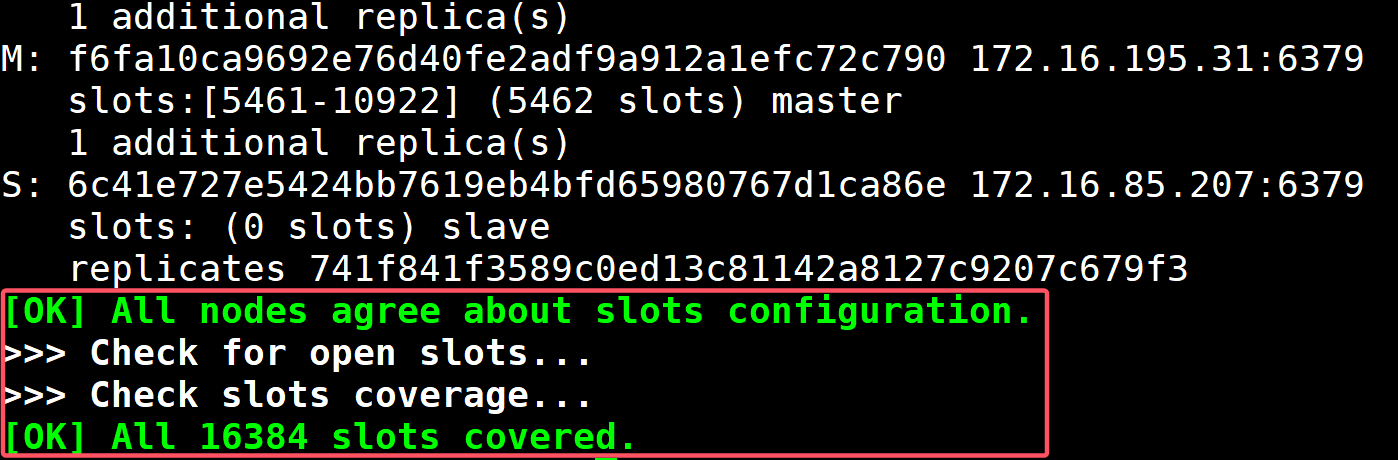

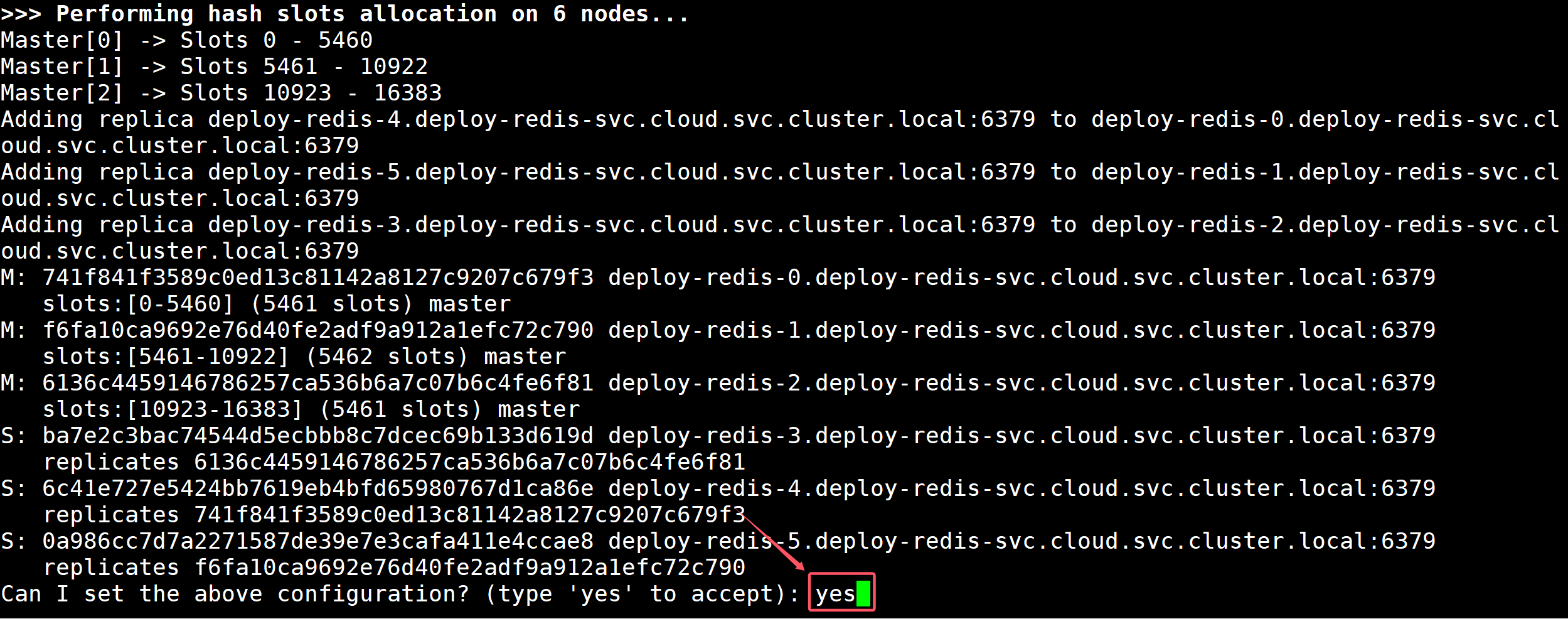

image-20240923204125203

image-20240923204210303

3. redis cluster集群测试

1
2
3
# step 1：redis-0 Pod中验证
root@deploy-redis-0:/data# redis-cli  -c
127.0.0.1:6379> cluster nodes

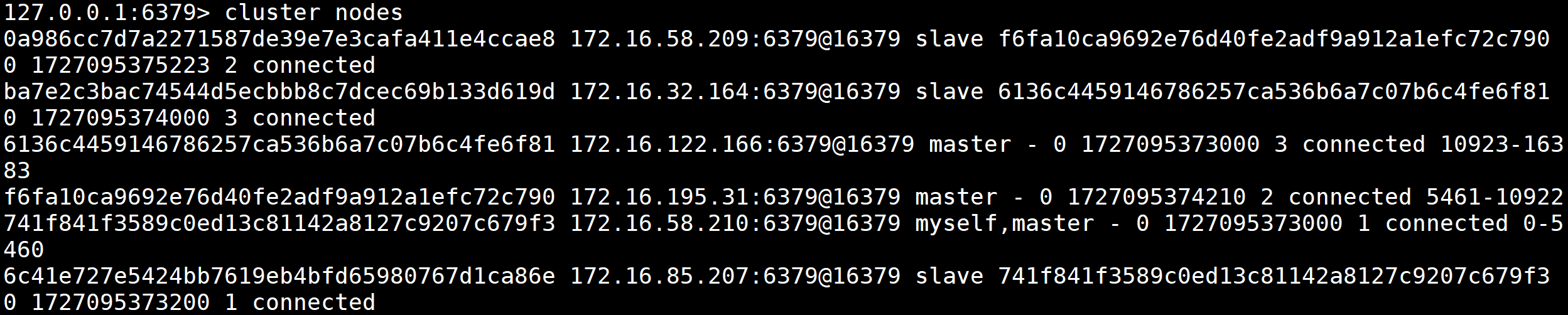

image-20240923204400412

四、Nocas集群部署

1. 创建数据库（此数据包含了nacos配置文件表）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
# step 1：创建资源清单
$ vim nacos-mysql.yaml
---
apiVersion: v1
kind: Service
metadata:
  name: deploy-mysql-nacos-svc
  namespace: cloud
  labels:
    app: mysql-nacos
spec:
  ports:
  - port: 3306
    name: mysql
    targetPort: 3306
    nodePort: 30310
  selector:
    app: mysql-nacos
  type: NodePort
  sessionAffinity: ClientIP

---
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: deploy-mysql-nacos
  namespace: cloud
spec:
  selector:
    matchLabels:
      app: mysql-nacos
  serviceName: "deploy-mysql-nacos-svc"
  replicas: 1
  template:
    metadata:
      labels:
        app: mysql-nacos
    spec:
      terminationGracePeriodSeconds: 10
      containers:
      - args:
        - --character-set-server=utf8mb4
        - --collation-server=utf8mb4_unicode_ci
        - --lower_case_table_names=1
        - --default-time_zone=+8:00
        name: mysql
        image: registry.cn-hangzhou.aliyuncs.com/hujiaming/nacos-mysql:2.0.4
        ports:
        - containerPort: 3306
          name: mysql
        volumeMounts:
        - name: nacos-mysql-data
          mountPath: /var/lib/mysql
        env:
        - name: MYSQL_ROOT_PASSWORD
          valueFrom:
            secretKeyRef:
              key: mysql_root_password
              name: mysql-password
  # 定义存储类模版
  volumeClaimTemplates:
  - metadata:
      name: nacos-mysql-data # 这个名字要与上面的对应
    spec:
      accessModes:
      - ReadWriteMany # 设置多节点读写模式
      resources:
        requests:
          storage: 1Gi # 申请1个g的存储空间，可根据自己的服务器空间修改
      storageClassName: nfs-client # 这里填写你存储类的名字

# step 2：创建资源
$ kubectl create -f nacos-mysql.yaml
service/deploy-mysql-nacos-svc created
statefulset.apps/deploy-mysql-nacos created

# step 3：查看资源
$ kubectl get -f nacos-mysql.yaml
NAME                             TYPE       CLUSTER-IP    EXTERNAL-IP   PORT(S)          AGE
service/deploy-mysql-nacos-svc   NodePort   10.96.57.28   <none>        3306:30310/TCP   2m22s

NAME                                  READY   AGE
statefulset.apps/deploy-mysql-nacos   1/1     2m22s

# step 4：查看Pod
$ kubectl get po  -l app=mysql-nacos -n cloud
NAME                   READY   STATUS    RESTARTS   AGE
deploy-mysql-nacos-0   1/1     Running   0          3m40s

# step 5：进入Pod
$ kubectl exec -it deploy-mysql-nacos-0 -n cloud -- bash

# step 6：在Pod中登录MySQL
bash-4.2# mysql -uroot -proot

# step 7：查看数据库
mysql> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| mysql              |
| nacos_config       |
| performance_schema |
| sys                |
+--------------------+
5 rows in set (0.02 sec)

# step 8：切换数据库
mysql> use nacos_config；

# step 9：查看nacos_config数据库所有的表
mysql> show tables;
+------------------------+
| Tables_in_nacos_config |
+------------------------+
| config_info            |
| config_info_aggr       |
| config_info_beta       |
| config_info_tag        |
| config_tags_relation   |
| group_capacity         |
| his_config_info        |
| permissions            |
| roles                  |
| tenant_capacity        |
| tenant_info            |
| users                  |
+------------------------+
12 rows in set (0.00 sec)

2. 创建nacos configmap

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
# step 1：创建configmap
$ kubectl create configmap nacos-deploy-config -n cloud \
--from-literal=mode=cluster \
--from-literal=nacos-servers='deploy-nacos-0.deploy-nacos-svc.cloud.svc.cluster.local:8848 deploy-nacos-1.deploy-nacos-svc.cloud.svc.cluster.local:8848 deploy-nacos-2.deploy-nacos-svc.cloud.svc.cluster.local:8848' \
--from-literal=spring-datasource-platform=mysql \
--from-literal=mysql-service-host='deploy-mysql-nacos-0.deploy-mysql-nacos-svc.cloud.svc.cluster.local' \
--from-literal=mysql-service-port=3306 \
--from-literal=mysql-service-db-name=nacos_config \
--from-literal=mysql-service-user=root \
--from-literal=mysql-database-num=1 \
--from-literal=mysql-service-db-param='characterEncoding=utf8&connectTimeout=1000&socketTimeout=3000&autoReconnect=true&useSSL=false' \
--from-literal=jvm-xms=256m \
--from-literal=jvm-xmx=256m \
--from-literal=jvm-xmn=128m \
--dry-run=client -o yaml > nacos-mysql-file-cm.yaml

# step 2：创建资源
$ kubectl create -f nacos-mysql-file-cm.yaml
configmap/nacos-deploy-config created

# step 3：查看资源
$ kubectl get -f nacos-mysql-file-cm.yaml
NAME                  DATA   AGE
nacos-deploy-config   12     33s

3. 创建nacos 集群Pod

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
# step 1：创建资源清单
$ vim nacos-sts.yaml
---
apiVersion: v1
kind: Service
metadata:
  name: deploy-nacos-svc
  namespace: cloud
  labels:
    app: nacos
spec:
  ports:
  - port: 8848
    name: nacos
    targetPort: 8848
    nodePort: 30848
  selector:
    app: nacos
  type: NodePort
  sessionAffinity: ClientIP

---
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: deploy-nacos
  namespace: cloud
spec:
  selector:
    matchLabels:
      app: nacos
  serviceName: "deploy-nacos-svc"
  replicas: 3
  template:
    metadata:
      labels:
        app: nacos
    spec:
      terminationGracePeriodSeconds: 10
      containers:
      - name: nacos
        image: registry.cn-hangzhou.aliyuncs.com/hujiaming/nacos-server:v2.0.4
        ports:
        - containerPort: 8848
          name: nacos
        env: # 引用各类环境变量为nacos做配置，注意大部分引用configmap，只有数据库密码引用的创建mysql时候的secret
        - name: JVM_XMN
          valueFrom:
            configMapKeyRef:
              key: jvm-xmn
              name: nacos-deploy-config
        - name: JVM_XMS
          valueFrom:
            configMapKeyRef:
              key: jvm-xms
              name: nacos-deploy-config
        - name: JVM_XMX
          valueFrom:
            configMapKeyRef:
              key: jvm-xmx
              name: nacos-deploy-config
        - name: MODE
          valueFrom:
            configMapKeyRef:
              key: mode
              name: nacos-deploy-config
        - name: MYSQL_DATABASE_NUM
          valueFrom:
            configMapKeyRef:
              key: mysql-database-num
              name: nacos-deploy-config
        - name: MYSQL_SERVICE_DB_NAME
          valueFrom:
            configMapKeyRef:
              key: mysql-service-db-name
              name: nacos-deploy-config
        - name: MYSQL_SERVICE_DB_PARAM
          valueFrom:
            configMapKeyRef:
              key: mysql-service-db-param
              name: nacos-deploy-config
        - name: MYSQL_SERVICE_HOST
          valueFrom:
            configMapKeyRef:
              key: mysql-service-host
              name: nacos-deploy-config
        - name: MYSQL_SERVICE_PASSWORD
          valueFrom:
            secretKeyRef:
              key: mysql_root_password
              name: mysql-password
        - name: MYSQL_SERVICE_PORT
          valueFrom:
            configMapKeyRef:
              key: mysql-service-port
              name: nacos-deploy-config
        - name: MYSQL_SERVICE_USER
          valueFrom:
            configMapKeyRef:
              key: mysql-service-user
              name: nacos-deploy-config
        - name: NACOS_SERVERS
          valueFrom:
            configMapKeyRef:
              key: nacos-servers
              name: nacos-deploy-config
        - name: SPRING_DATASOURCE_PLATFORM
          valueFrom:
            configMapKeyRef:
              key: spring-datasource-platform
              name: nacos-deploy-config

# step 2：创建资源
$ kubectl create -f nacos-sts.yaml
service/deploy-nacos-svc created
statefulset.apps/deploy-nacos created

# step 3：查看资源
$ kubectl  get po  -n cloud -l app=nacos
NAME             READY   STATUS    RESTARTS   AGE
deploy-nacos-0   1/1     Running   0          6m17s
deploy-nacos-1   1/1     Running   0          6m14s
deploy-nacos-2   1/1     Running   0          4m13s

$ kubectl  get svc -n cloud -l app=nacos
NAME               TYPE       CLUSTER-IP    EXTERNAL-IP   PORT(S)          AGE
deploy-nacos-svc   NodePort   10.96.32.82   <none>        8848:30848/TCP   6m47s

4. 测试nacos集群

  1. 登录nacos web界面
1
2
3
4
# step 1：查看nacos svc
$ kubectl  get svc -n cloud -l app=nacos
NAME               TYPE       CLUSTER-IP    EXTERNAL-IP   PORT(S)          AGE
deploy-nacos-svc   NodePort   10.96.32.82   <none>        8848:30848/TCP   6m47s
  1. 浏览器访问：http://集群节点IP+30848/nacos

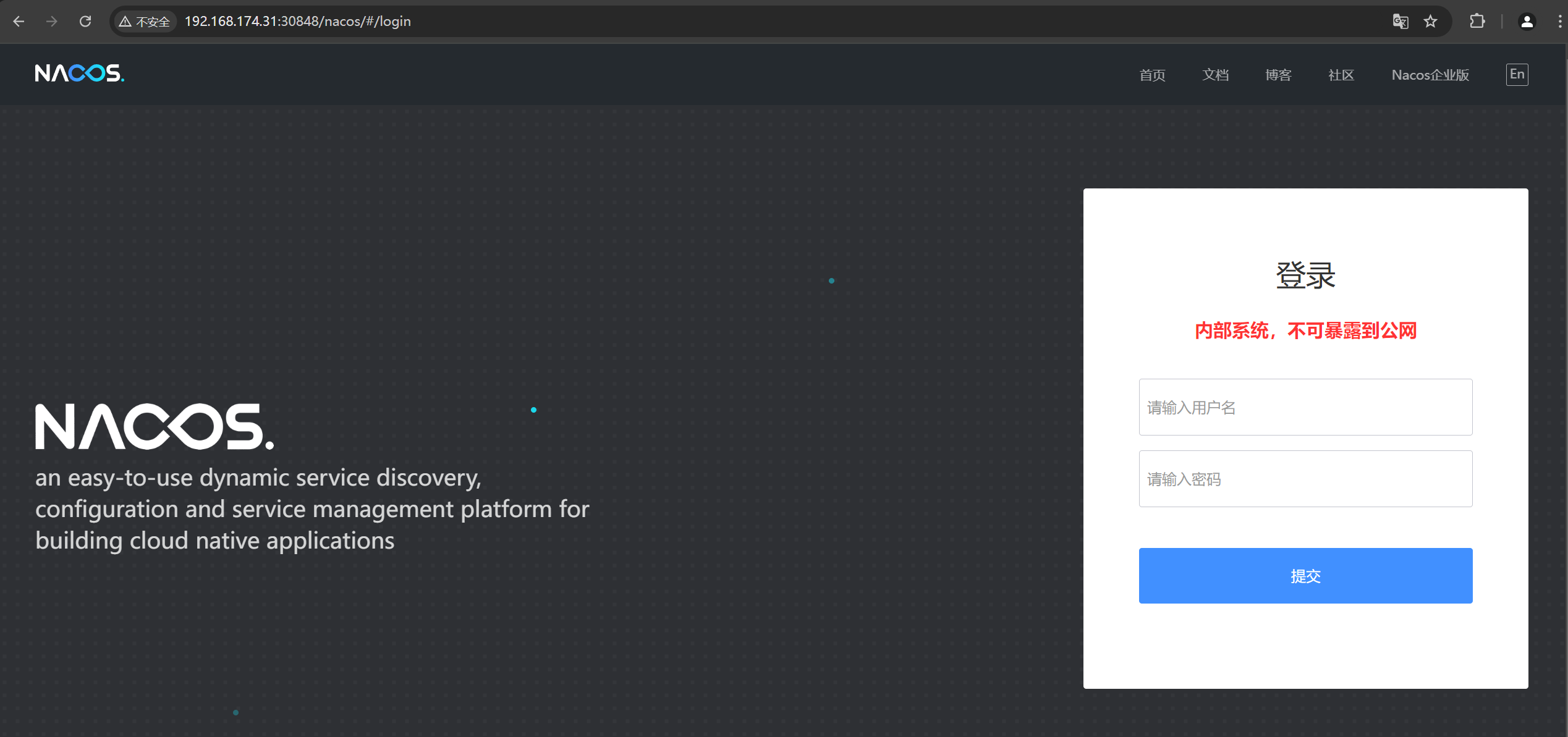

image-20240923213906093

用户名：nacos 密码：nacos

  1. 查看集群列表

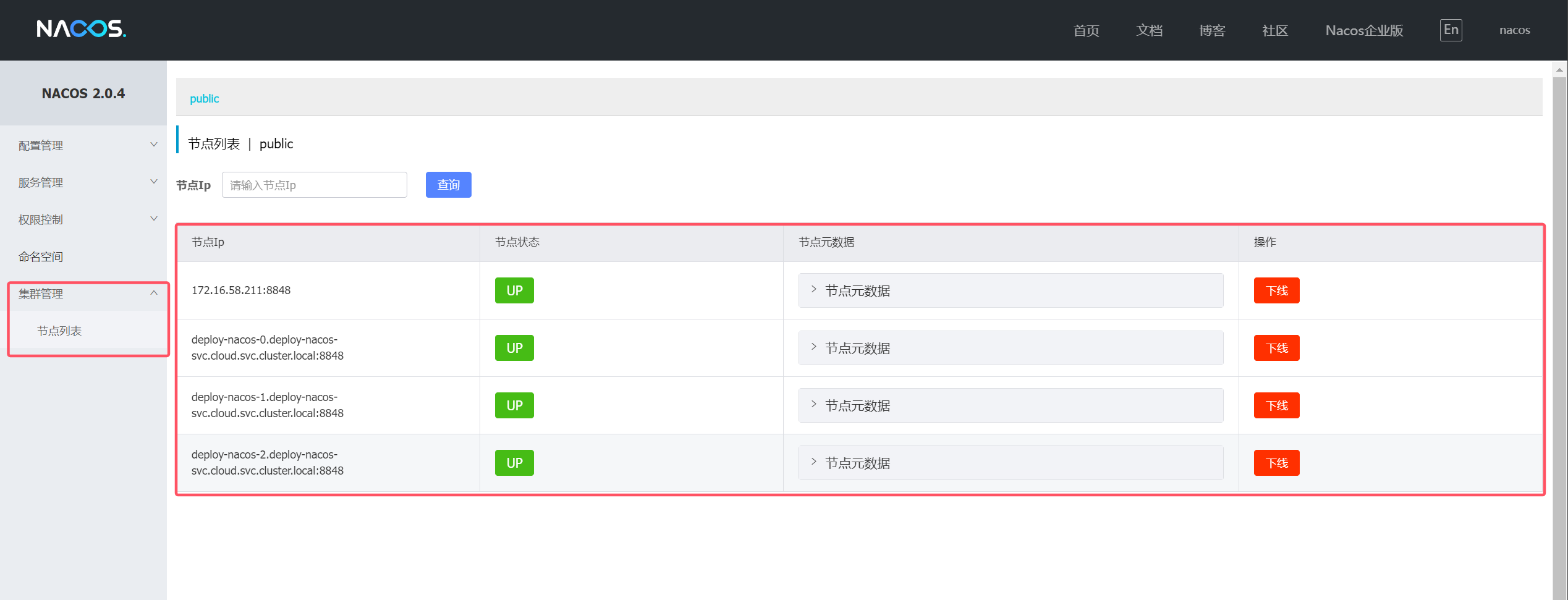

image-20240923214027083

  1. 插入测试数据

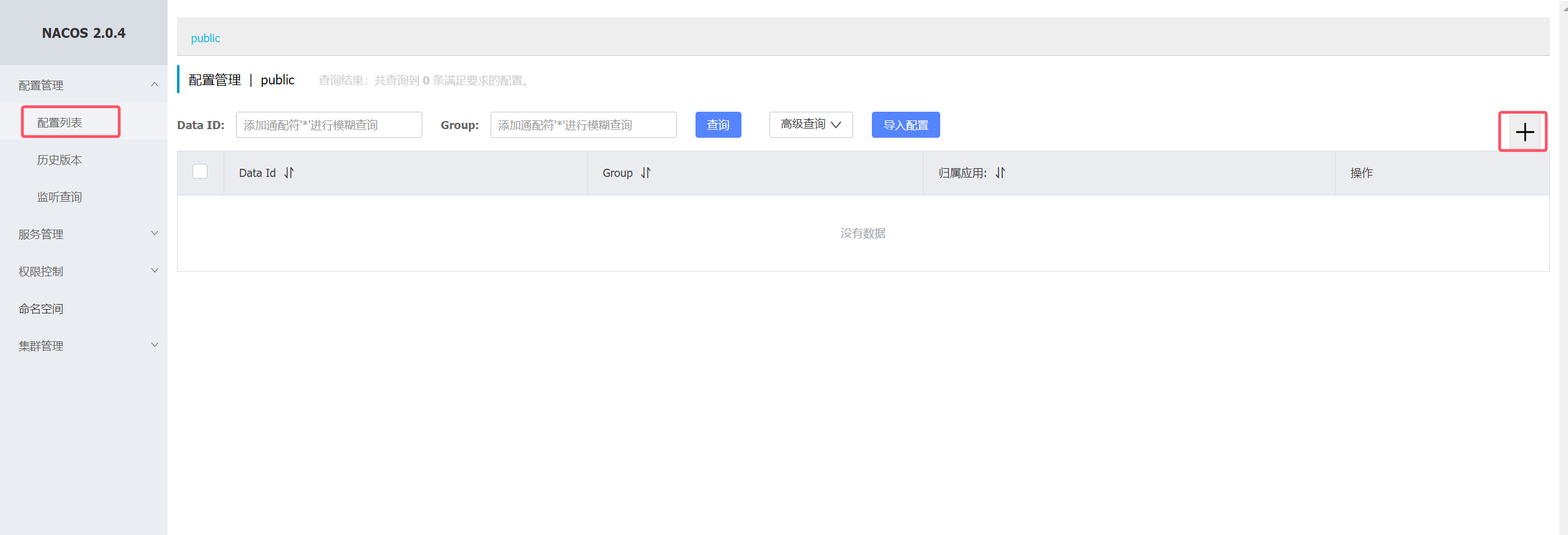

image-20240923214223729

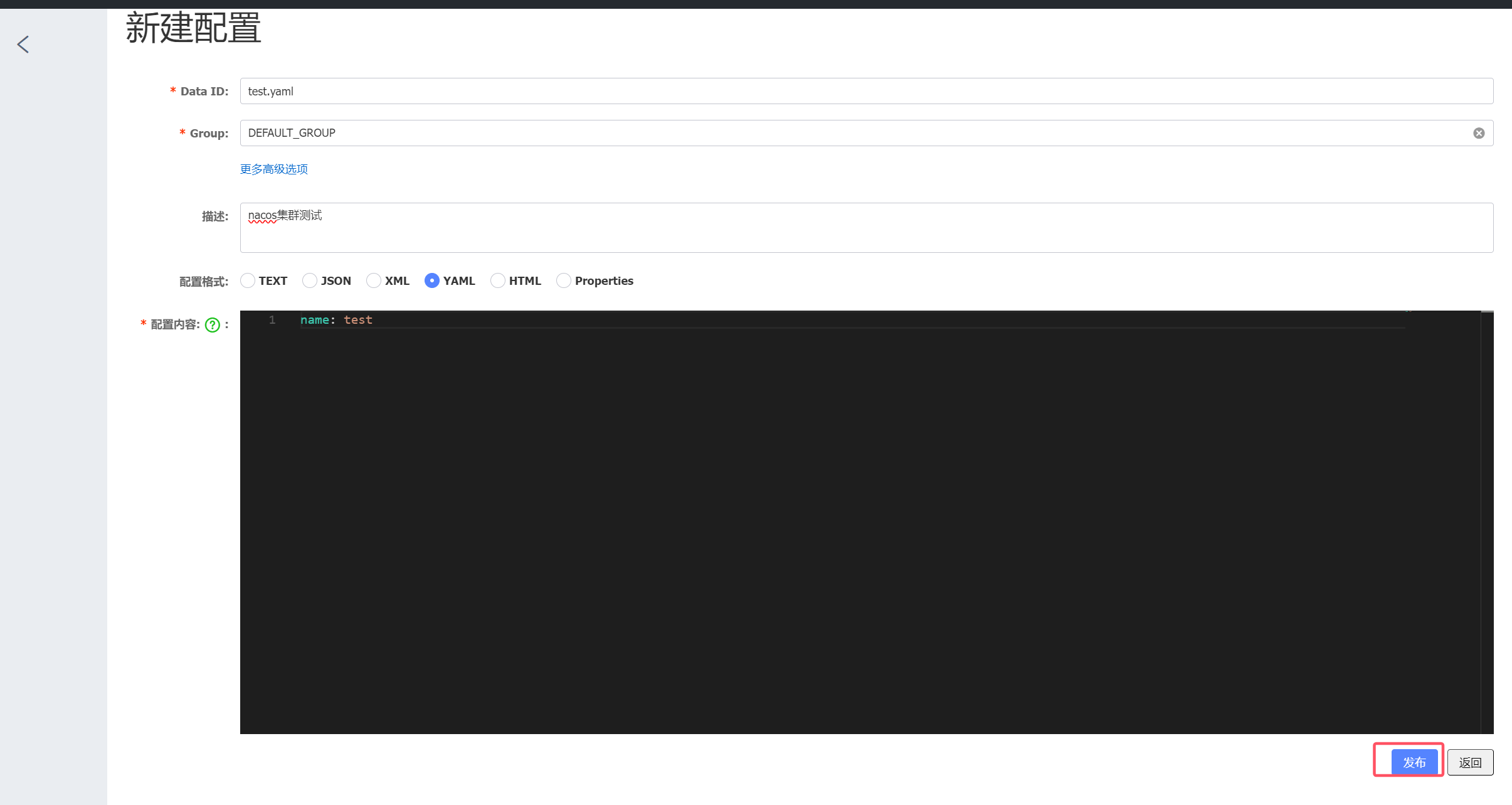

image-20240923214303929

  1. 数据库数据查询测试数据
1
2
3
4
5
6
7
8
# step 1：进入 nacos 数据库 Pod
[root@k8s-master01 nacos]# kubectl  exec -it deploy-mysql-nacos-0 -n cloud  -- bash

# step 2：连接数据库
bash-4.2# mysql -uroot -proot

# step 3：查看测试数据
mysql> select * from nacos_config.config_info;

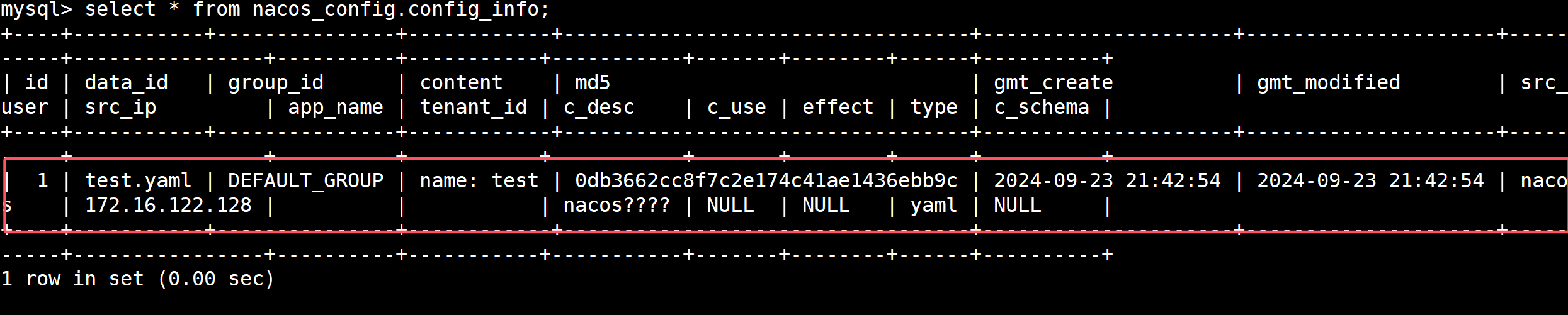

image-20240923214726448

  1. 删除测试数据

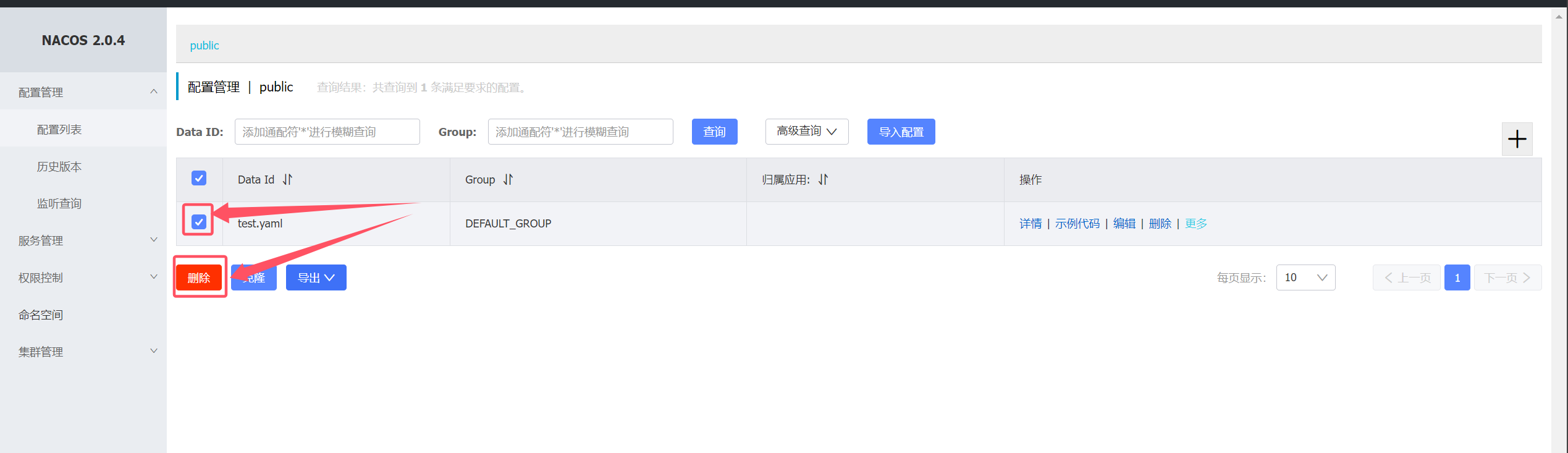

image-20240923214809083

若依微服务项目容器化部署

一、创建项目部署命名空间

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
# step 1：创建项目目录
$ mkdir ruoyi-cloud && cd ruoyi-cloud

# step 2：准备namespace资源清单
$ kubectl create namespace yueyang-cloud --dry-run=client --output=yaml  > 01-yueyang-cloud-ns.yaml
	# 资源清单内容如下
---
apiVersion: v1
kind: Namespace
metadata:
  creationTimestamp: null
  name: yueyang-cloud
spec: {}
status: {}

# step 3：创建资源
$ kubectl create -f 01-yueyang-cloud-ns.yaml
namespace/yueyang-cloud created

# step 4：查看资源
$ kubectl get -f 01-yueyang-cloud-ns.yaml
NAME            STATUS   AGE
yueyang-cloud   Active   3s

二、创建部署环境configmap（代码需指定部署环境）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
# step 5：创建资源清单
$ kubectl create configmap spring-profile-cm --namespace=yueyang-cloud --from-literal=spring-profiles-active=prod --dry-run=client -oyaml > 02-spring-profiles-active-cm.yaml
	# 资源清单内容如下
---
apiVersion: v1
data:
  spring-profiles-active: prod
kind: ConfigMap
metadata:
  creationTimestamp: null
  name: spring-profile-cm
  namespace: yueyang-cloud

# step 6：创建confimap
$ kubectl create -f 02-spring-profiles-active-cm.yaml
configmap/spring-profile-cm created

# step 7：查看资源
$ kubectl get -f 02-spring-profiles-active-cm.yaml
NAME                DATA   AGE
spring-profile-cm   1      27s

二、创建MySQL

1. 创建MySQL 密码secret

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
# step 8：创建资源清单
$ kubectl create secret generic yueyang-mysql-password-secret --namespace=yueyang-cloud  --from-literal=mysql-root-password=root --dry-run=client -oyaml > 03-mysql-root-password-secret.yaml
	# 资源清单内容如下
---
apiVersion: v1
data:
  mysql-root-password: cm9vdA==
kind: Secret
metadata:
  creationTimestamp: null
  name: yueyang-mysql-password-secret
  namespace: yueyang-cloud

# step 9：创建secret
$ kubectl create -f 03-mysql-root-password-secret.yaml
secret/yueyang-mysql-password-secret

# step 10：查看资源
$ kubectl get -f 03-mysql-root-password-secret.yaml
NAME                             TYPE     DATA   AGE
yueyang-mysql-password-secret   Opaque   1      6s

2. 创建MySQL 配置文件configmap

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
# step 11：编写my.cnf配置文件
$ vim my.cnf
# For advice on how to change settings please see
# http://dev.mysql.com/doc/refman/5.7/en/server-configuration-defaults.html

[mysqld]
#
# Remove leading # and set to the amount of RAM for the most important data
# cache in MySQL. Start at 70% of total RAM for dedicated server, else 10%.
# innodb_buffer_pool_size = 128M
#
# Remove leading # to turn on a very important data integrity option: logging
# changes to the binary log between backups.
# log_bin
#
# Remove leading # to set options mainly useful for reporting servers.
# The server defaults are faster for transactions and fast SELECTs.
# Adjust sizes as needed, experiment to find the optimal values.
# join_buffer_size = 128M
# sort_buffer_size = 2M
# read_rnd_buffer_size = 2M
skip-host-cache
skip-name-resolve
datadir=/var/lib/mysql
socket=/var/run/mysqld/mysqld.sock
secure-file-priv=/var/lib/mysql-files
user=mysql

# Disabling symbolic-links is recommended to prevent assorted security risks
symbolic-links=0

#log-error=/var/log/mysqld.log
pid-file=/var/run/mysqld/mysqld.pid
[client]
socket=/var/run/mysqld/mysqld.sock

!includedir /etc/mysql/conf.d/
!includedir /etc/mysql/mysql.conf.d/


# step 12：准备configmap资源清单
$ kubectl create configmap yueyang-mysql-config-cm --namespace=yueyang-cloud --from-file=my.cnf --dry-run=client -oyaml > 04-yueyang-mysql-config-cm.yaml
	# 资源清单内容如下
---
apiVersion: v1
data:
  my.cnf: |
    # For advice on how to change settings please see
    # http://dev.mysql.com/doc/refman/5.7/en/server-configuration-defaults.html

    [mysqld]
    #
    # Remove leading # and set to the amount of RAM for the most important data
    # cache in MySQL. Start at 70% of total RAM for dedicated server, else 10%.
    # innodb_buffer_pool_size = 128M
    #
    # Remove leading # to turn on a very important data integrity option: logging
    # changes to the binary log between backups.
    # log_bin
    #
    # Remove leading # to set options mainly useful for reporting servers.
    # The server defaults are faster for transactions and fast SELECTs.
    # Adjust sizes as needed, experiment to find the optimal values.
    # join_buffer_size = 128M
    # sort_buffer_size = 2M
    # read_rnd_buffer_size = 2M
    skip-host-cache
    skip-name-resolve
    datadir=/var/lib/mysql
    socket=/var/run/mysqld/mysqld.sock
    secure-file-priv=/var/lib/mysql-files
    user=mysql

    # Disabling symbolic-links is recommended to prevent assorted security risks
    symbolic-links=0

    #log-error=/var/log/mysqld.log
    pid-file=/var/run/mysqld/mysqld.pid
    [client]
    socket=/var/run/mysqld/mysqld.sock

    !includedir /etc/mysql/conf.d/
    !includedir /etc/mysql/mysql.conf.d/
kind: ConfigMap
metadata:
  creationTimestamp: null
  name: mysql-config-cm
  namespace: yueyang-cloud

# step 13：创建资源
$ kubectl create -f 04-yueyang-mysql-config-cm.yaml
configmap/mysql-config-cm created


# step 14：查看资源
$ kubectl get -f 04-yueyang-mysql-config-cm.yaml
NAME                      DATA   AGE
mysql-config-cm   1      26s

3. 部署MySQL Pod

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
# step 15：编写资源清单
$ vim 05-mysql-sts.yaml
---
apiVersion: v1
kind: Service
metadata:
  name: yueyang-mysql-svc
  namespace: yueyang-cloud
  labels:
    app: yueyang-mysql
spec:
  ports:
    - port: 3306
      name: mysql
      targetPort: 3306
      # 如果需要NodePort暴露则将这里打开
      # nodePort: 30306
  # 如果需要NodePort暴露则将这里注释
  clusterIP: None
  selector:
    app: yueyang-mysql
  # 如果需要NodePort暴露则将这里改为NodePort
  # ClusterIP, NodePort, LoadBalancer
  type: ClusterIP
  # 如果需要NodePort暴露则将这里改为ClientIP
  # ClientIP, None
  sessionAffinity: None

---
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: yueyang-mysql
  namespace: yueyang-cloud
spec:
  selector:
    matchLabels:
      app: yueyang-mysql
  serviceName: "yueyang-mysql-svc"
  replicas: 1
  template:
    metadata:
      labels:
        app: yueyang-mysql
    spec:
      terminationGracePeriodSeconds: 10
      containers:
        # 一些部署MySQL的参数
        - args:
            - --character-set-server=utf8mb4
            - --collation-server=utf8mb4_unicode_ci
            - --lower_case_table_names=1
            - --default-time_zone=+8:00
          name: mysql
          # 注意修改为你自己的镜像地址
          image: registry.cn-hangzhou.aliyuncs.com/hujiaming-01/mysql:1.0.0
          # 存活探针，用于检查pod是否处于存活状态
#          livenessProbe:
                # 初始化后20秒开始检查
#            initialDelaySeconds: 20
            # 之后每过10秒检查一次
#            periodSeconds: 10
#            # 检查内容为3306端口是否存活
 #           tcpSocket:
  #            port: 3306
          ports:
            - containerPort: 3306
              name: mysql
          volumeMounts:
            - name: mysql-data
              mountPath: /var/lib/mysql
            - name: mysql-conf
              mountPath: /etc/my.cnf
              readOnly: true
              subPath: my.cnf
          env:
            - name: MYSQL_ROOT_PASSWORD
              valueFrom:
                secretKeyRef:
                  key: mysql-root-password
                  name: yueyang-mysql-password-secret
      imagePullSecrets:
        - name: yueyang-image-account-secret
      volumes:
#        - name: mysql-data
#          persistentVolumeClaim:
#            claimName: yueyang-mysql-pvc
        - name: mysql-conf
          configMap:
            name: mysql-config-cm
            items:
              - key: my.cnf
                mode: 0644
                path: my.cnf
  # 定义存储类模版
  volumeClaimTemplates:
  - metadata:
      name: mysql-data # 这个名字要与上面的对应
    spec:
      accessModes:
      - ReadWriteMany # 设置多节点读写模式
      resources:
        requests:
          storage: 2Gi # 申请2个g的存储空间，可根据自己的服务器空间修改
      storageClassName: nfs-client # 这里填写你存储类的名字


# step 16：创建资源
$ kubectl create -f 05-mysql-sts.yaml
service/yueyang-mysql-svc created

# step 17：查看Pod
$ kubectl get po -n yueyang-cloud
NAME              READY   STATUS    RESTARTS   AGE
yueyang-mysql-0   1/1     Running   0          8s

4. MySQL 验证使用

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
# step 18：进入MySQL pod
$ kubectl exec -it yueyang-mysql-0  -n yueyang-cloud -- bash

# step 19：连接数据库
$ bash-4.2# mysql -uroot -proot

# step 20：所有数据库
mysql> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| mysql              |
| performance_schema |
| sys                |
| yueyang_config     |
| yueyang_gen        |
| yueyang_job        |
| yueyang_seata      |
| yueyang_system     |
+--------------------+
9 rows in set (0.01 sec)

三、部署Nacos

需要创建的configmap总共有那么几个常量：

  • jvm-xmn: jvm新生区的内存大小
  • jvm-xms: jvm永久区的最小大小
  • jvm-xmx: jvm永久区的最大大小
  • mode: nacos启动模式，因为是单点启动，所以设置为 standalone
  • mysql-database-num: nacos连接数据库的数量，设置为1
  • mysql-service-db-name: mysql当中nacos数据库的名字。上一个步骤当中我们部署了mysql，里面关于nacos数据库的名字为yueyang_config
  • mysql-service-db-param: nacos连接数据库的参数
  • mysql-service-host: mysql数据库的地址
  • mysql-service-port: mysql数据库的端口
  • mysql-service-user: 连接mysql的用户名
  • spring-datasource-platform: nacos连接数据库的平台，只支持mysql

1. 创建configmap

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
# step 21：配置资源清单
$ kubectl create configmap yueyang-nacos-cm --namespace=yueyang-cloud --dry-run=client --output=yaml \
--from-literal=jvm-xmn=64m \
--from-literal=jvm-xms=128m \
--from-literal=jvm-xmx=128m \
--from-literal=mode=standalone \
--from-literal=mysql-database-num=1 \
--from-literal=mysql-service-db-name=yueyang_config \
--from-literal=mysql-service-db-param='characterEncoding=utf8&connectTimeout=1000&socketTimeout=3000&autoReconnect=true&useSSL=false&serverTimezone=UTC' \
--from-literal=mysql-service-host='yueyang-mysql-0.yueyang-mysql-svc.yueyang-cloud.svc.cluster.local' \
--from-literal=mysql-service-port=3306 \
--from-literal=mysql-service-user=root \
--from-literal=spring-datasource-platform=mysql  > 06-yueyang-nacos-cm.yaml
	# 资源清单如下：
---
apiVersion: v1
data:
  jvm-xmn: 64m
  jvm-xms: 128m
  jvm-xmx: 128m
  mode: standalone
  mysql-database-num: "1"
  mysql-service-db-name: yueyang_config
  mysql-service-db-param: characterEncoding=utf8&connectTimeout=1000&socketTimeout=3000&autoReconnect=true&useSSL=false&serverTimezone=UTC
  mysql-service-host: yueyang-mysql-0.yueyang-mysql-svc.yueyang-cloud.svc.cluster.local
  mysql-service-port: "3306"
  mysql-service-user: root
  spring-datasource-platform: mysql
kind: ConfigMap
metadata:
  creationTimestamp: null
  name: yueyang-nacos-cm
  namespace: yueyang-cloud

# step 22：创建资源
$ kubectl create -f 06-yueyang-nacos-cm.yaml
configmap/yueyang-nacos-cm created

# step 23：查看资源
$ kubectl get -f 06-yueyang-nacos-cm.yaml
NAME               DATA   AGE
yueyang-nacos-cm   11     66s

2. 部署Nacos Pod

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
# step 24：编写资源清单
$ vim 07-nacos-sts.yaml
---
apiVersion: v1
kind: Service
metadata:
  name: yueyang-nacos-svc
  namespace: yueyang-cloud
  labels:
    app: yueyang-nacos
spec:
  ports:
    - port: 8848
      name: client
      targetPort: 8848
      # 如果你需要使用到NodePort或LoadBalancer暴露应用，那么你可以将这里打开
      # nodePort: 30848
    - port: 9848
      name: client-rpc
      targetPort: 9848
      # nodePort: 30948
    - port: 9849
      name: raft-rpc
      targetPort: 9849
      # nodePort: 30849
    - port: 7848
      name: old-raft-rpc
      targetPort: 7848
      # nodePort: 30748
  # 如果你需要使用到NodePort或LoadBalancer暴露应用，那么你需要注释掉clusterIP
  clusterIP: None
  selector:
    app: yueyang-nacos
  # ClusterIP, NodePort, LoadBalancer
  type: ClusterIP
  # 如果你需要使用到NodePort或LoadBalancer暴露应用，那么你需要将这里改为ClientIP
  # ClientIP, None
  sessionAffinity: None

---
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: yueyang-nacos
  namespace: yueyang-cloud
spec:
  selector:
    matchLabels:
      app: yueyang-nacos
  serviceName: "yueyang-nacos-svc"
  replicas: 1
  template:
    metadata:
      labels:
        app: yueyang-nacos
    spec:
      terminationGracePeriodSeconds: 10
      containers:
        - name: nacos
                # 这里一个是官方镜像，一个是我拉取的官方镜像然后推送到国内阿里云的镜像
          # image: docker.io/nacos/nacos-server:v2.0.4
          image: registry.cn-hangzhou.aliyuncs.com/hujiaming/nacos-server:v2.0.4
          # 存活探针
#          livenessProbe:
                # 通过发送http的get请求确认nacos是否存活
#            httpGet:
                # 请求8848端口的/nacos/actuator/health路径，如果返回为200则证明存活
#              path: /nacos/actuator/health
#              port: 8848
#              scheme: HTTP
            # pod初始化完成后多久开始进行存活探针的检查，这里设置为30秒
#            initialDelaySeconds: 30
            # 之后每十秒检查一次是否存活
#            periodSeconds: 10
          ports:
            - containerPort: 8848
              name: client
            - containerPort: 9848
              name: client-rpc
            - containerPort: 9849
              name: raft-rpc
            - containerPort: 7848
              name: old-raft-rpc
          volumeMounts:
                # 挂载数据目录
            - name: nacos-data
              mountPath: /home/nacos/data
                # 挂载日志目录
            - name: nacos-logs
              mountPath: /home/nacos/logs
          env:
                # 引用ConfigMap里面的各个属性
            - name: JVM_XMN
              valueFrom:
                configMapKeyRef:
                  key: jvm-xmn
                  name: yueyang-nacos-cm
            - name: JVM_XMS
              valueFrom:
                configMapKeyRef:
                  key: jvm-xms
                  name: yueyang-nacos-cm
            - name: JVM_XMX
              valueFrom:
                configMapKeyRef:
                  key: jvm-xmx
                  name: yueyang-nacos-cm
            - name: MODE
              valueFrom:
                configMapKeyRef:
                  key: mode
                  name: yueyang-nacos-cm
            - name: MYSQL_DATABASE_NUM
              valueFrom:
                configMapKeyRef:
                  key: mysql-database-num
                  name: yueyang-nacos-cm
            - name: MYSQL_SERVICE_DB_NAME
              valueFrom:
                configMapKeyRef:
                  key: mysql-service-db-name
                  name: yueyang-nacos-cm
            - name: MYSQL_SERVICE_DB_PARAM
              valueFrom:
                configMapKeyRef:
                  key: mysql-service-db-param
                  name: yueyang-nacos-cm
            - name: MYSQL_SERVICE_HOST
              valueFrom:
                configMapKeyRef:
                  key: mysql-service-host
                  name: yueyang-nacos-cm
            # 数据库的密码引用之前为MySQL创建的Secret
            - name: MYSQL_SERVICE_PASSWORD
              valueFrom:
                secretKeyRef:
                  key: mysql-root-password
                  name: yueyang-mysql-password-secret
            - name: MYSQL_SERVICE_PORT
              valueFrom:
                configMapKeyRef:
                  key: mysql-service-port
                  name: yueyang-nacos-cm
            - name: MYSQL_SERVICE_USER
              valueFrom:
                configMapKeyRef:
                  key: mysql-service-user
                  name: yueyang-nacos-cm
            - name: SPRING_DATASOURCE_PLATFORM
              valueFrom:
                configMapKeyRef:
                  key: spring-datasource-platform
                  name: yueyang-nacos-cm
  # 定义存储类模版
  volumeClaimTemplates:
  - metadata:
      name: nacos-data # 这个名字要与上面的对应
    spec:
      accessModes:
      - ReadWriteMany # 设置多节点读写模式
      resources:
        requests:
          storage: 2Gi # 申请2个g的存储空间，可根据自己的服务器空间修改
      storageClassName: nfs-client # 这里填写你存储类的名字
  - metadata:
      name: nacos-logs # 这个名字要与上面的对应
    spec:
      accessModes:
      - ReadWriteMany # 设置多节点读写模式
      resources:
        requests:
          storage: 2Gi # 申请2个g的存储空间，可根据自己的服务器空间修改
      storageClassName: nfs-client # 这里填写你存储类的名字
1
2
3
4
5
6
7
8
9
10
11
12
13
14
# step 25：创建资源
$ kubectl create -f 07-nacos-sts.yaml
service/yueyang-nacos-svc created
statefulset.apps/yueyang-nacos created

# step 26：查看资源
$ kubectl  get po,svc -n yueyang-cloud
NAME                  READY   STATUS    RESTARTS   AGE
pod/yueyang-mysql-0   1/1     Running   0          18m
pod/yueyang-nacos-0   1/1     Running   0          71s

NAME                        TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)                               AGE
service/yueyang-mysql-svc   ClusterIP   None         <none>        3306/TCP                              18m
service/yueyang-nacos-svc   ClusterIP   None         <none>        8848/TCP,9848/TCP,9849/TCP,7848/TCP   71s

3. 创建nacos ingress

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
# step 27：创建ingress 资源清单
$ vim 08-nacos-ingress.yaml
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  creationTimestamp: null
  name: yueyang-nacos-ingress
  namespace: yueyang-cloud
spec:
  ingressClassName: nginx
  rules:
  - host: nacos.tanke.love
    http:
      paths:
      - backend:
          service:
            name: yueyang-nacos-svc
            port:
              number: 8848
        path: /
        pathType: Prefix
1
2
3
4
5
6
7
8
9
10
11
# step 28：创建ingress资源
$ kubectl  create -f 08-nacos-ingress.yaml
ingress.networking.k8s.io/yueyang-nacos-ingress created

# step 29：查看ingress资源
$ kubectl get -f 08-nacos-ingress.yaml
NAME                    CLASS   HOSTS              ADDRESS   PORTS   AGE
yueyang-nacos-ingress   nginx   nacos.tanke.love             80      46s

# step 30：查看ingress控制svc
$ kubectl get  svc -n ingress-nginx

image-20240924235646026

浏览器访问http://nacos.tanke.love:30242/nacos

image-20240925002025990

四、部署redis

1. 配置redis 配置文件configmap

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
# step 31：编写redis配置文件
$ vim redis.conf
# 关闭保护模式
protected-mode no

# redis链接密码，如果需要密码，那么请取消注释
# requirepass redis

# 日志级别
loglevel warning

# 日志存放目录
logfile "/data/redis.log"

# 数据文件目录
dir /data
dbfilename dump.rdb

# 数据库数量
databases 16

# 保存数据库到数据文件
save 900 1
save 300 10
save 60 10000
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
# step 32：配置redis配置文件configmap
$ kubectl create configmap yueyang-redis-config-cm --namespace=yueyang-cloud --from-file=redis.conf --dry-run=client --output=yaml > 09-redis-file-cm.yaml
	# 资源清单内容如下
---
apiVersion: v1
data:
  redis.conf: |
    # 关闭保护模式
    protected-mode no

    # redis链接密码，如果需要密码，那么请取消注释
    # requirepass redis

    # 日志级别
    loglevel warning

    # 日志存放目录
    logfile "/data/redis.log"

    # 数据文件目录
    dir /data
    dbfilename dump.rdb

    # 数据库数量
    databases 16

    # 保存数据库到数据文件
    save 900 1
    save 300 10
    save 60 10000
kind: ConfigMap
metadata:
  creationTimestamp: null
  name: yueyang-redis-config-cm
  namespace: yueyang-cloud

# step 33：创建资源
$ kubectl create -f 09-redis-file-cm.yaml
configmap/yueyang-redis-config-cm created

# step 34：查看资源
$ kubectl get -f 09-redis-file-cm.yaml
NAME                      DATA   AGE
yueyang-redis-config-cm   1      17s

2. 部署redis Pod

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
# step 35：编写资源清单
$ vim 10-redis-sts.yaml
---
apiVersion: v1
kind: Service
metadata:
  name: yueyang-redis-svc
  namespace: yueyang-cloud
  labels:
    app: yueyang-redis
spec:
  ports:
    - port: 6379
      name: redis
      targetPort: 6379
      # 如果需要NodePort暴露则将这里打开
      # nodePort: 30379
   # 如果需要NodePort暴露则将这里注释
  clusterIP: None
  selector:
    app: yueyang-redis
  # 如果需要NodePort暴露则将这里改为NodePort
  # ClusterIP, NodePort, LoadBalancer
  type: ClusterIP
  # 如果需要NodePort暴露则将这里改为ClientIP
  # ClientIP, None
  sessionAffinity: None

---

apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: yueyang-redis
  namespace: yueyang-cloud
spec:
  selector:
    matchLabels:
      app: yueyang-redis
  serviceName: "yueyang-redis-svc"
  replicas: 1
  template:
    metadata:
      labels:
        app: yueyang-redis
    spec:
      terminationGracePeriodSeconds: 10
      containers:
        # 启动命令，使用指定配置文件启动
        - command:
            - "redis-server"
            - "/usr/local/etc/redis.conf"
          name: redis
                # 这里一个是官方镜像，一个是我拉取的官方镜像然后推送到国内阿里云的镜像
          # image: docker.io/library/redis:5.0.14
          image: registry.cn-shenzhen.aliyuncs.com/xiaohh-docker/redis:5.0.14
          # 存活探针
          livenessProbe:
                # pod初始化完成后20秒开始检测
            initialDelaySeconds: 20
            # 之后每隔10秒检查一次
            periodSeconds: 10
            # 检查的流程是用tcp协议去查看6379端口是否存活
            tcpSocket:
              port: 6379
          ports:
            - containerPort: 6379
              name: redis
          volumeMounts:
                # 挂载数据目录
            - name: redis-data
              mountPath: /data
            # 挂载配置文件
            - name: redis-config
              mountPath: /usr/local/etc
              readOnly: true
      volumes:
        - name: redis-config
          configMap:
            name: yueyang-redis-config-cm
            items:
              - key: redis.conf
                path: redis.conf
  volumeClaimTemplates:
  - metadata:
      name: redis-data # 这个名字要与上面的对应
    spec:
      accessModes:
      - ReadWriteMany # 设置多节点读写模式
      resources:
        requests:
          storage: 2Gi # 申请2个g的存储空间，可根据自己的服务器空间修改
      storageClassName: nfs-client # 这里填写你存储类的名字
1
2
3
4
5
6
7
8
9
10
11
12
# step 36：创建资源
$ kubectl create -f 10-redis-sts.yaml
service/yueyang-redis-svc created
statefulset.apps/yueyang-redis created

# step 37：查看资源
$ kubectl get -f 10-redis-sts.yaml
NAME                        TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)    AGE
service/yueyang-redis-svc   ClusterIP   None         <none>        6379/TCP   7s

NAME                             READY   AGE
statefulset.apps/yueyang-redis   0/1     7s

3. 测试redis可用性

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
# step 38：查看Pod
$ kubectl get po -n yueyang-cloud
NAME              READY   STATUS    RESTARTS   AGE
yueyang-mysql-0   1/1     Running   0          58m
yueyang-nacos-0   1/1     Running   0          11m
yueyang-redis-0   1/1     Running   0          109s

# step 39：进入redis pod
$ kubectl exec -it yueyang-redis-0  -n yueyang-cloud  -- bash

# step 40：连接redis数据库
root@yueyang-redis-0:/data# redis-cli

# step 41：测试
127.0.0.1:6379> ping
PONG

五、部署sentinel

​ ruoyi-cloud需要使用到sentinel进行熔断限流

1. 创建Sentinel的ConfigMap

​ 镜像当中有一些环境变量，我们定义一个ConfigMap来存储它。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
# step 42：配置资源清单
$ kubectl create configmap yueyang-sentinel-cm --namespace=yueyang-cloud --dry-run=client --output=yaml --from-literal=api-port=8719 --from-literal=java-option='-Dfile.encoding=UTF-8 -XX:+UseParallelGC -XX:+PrintGCDetails -Xloggc:/var/log/devops-example.gc.log -XX:+HeapDumpOnOutOfMemoryError -XX:+DisableExplicitGC' --from-literal=server-port=8718 --from-literal=xmn=64m --from-literal=xms=128m --from-literal=xmx=128m > 11-sentinel-cm.yaml
	# 资源清单内容如下：
---
apiVersion: v1
data:
  api-port: "8719"
  java-option: -Dfile.encoding=UTF-8 -XX:+UseParallelGC -XX:+PrintGCDetails -Xloggc:/var/log/devops-example.gc.log
    -XX:+HeapDumpOnOutOfMemoryError -XX:+DisableExplicitGC
  server-port: "8718"
  xmn: 64m
  xms: 128m
  xmx: 128m
kind: ConfigMap
metadata:
  creationTimestamp: null
  name: yueyang-sentinel-cm
  namespace: yueyang-cloud

# step 43：创建资源
$ kubectl  create -f 11-sentinel-cm.yaml
configmap/yueyang-sentinel-cm created

# step 44：查看资源
$ kubectl get -f 11-sentinel-cm.yaml
NAME                  DATA   AGE
yueyang-sentinel-cm   6      18s

2. 创建sentinel 密码secret

​ 用secret来存储sentinel的用户名和密码。⚠️生产环境注意修改sentinel的用户名和密码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
# step 45：配置资源清单
$ kubectl create secret generic yueyang-sentinel-password-secret --namespace=yueyang-cloud --dry-run=client --output=yaml --from-literal=sentinel-password=sentinel --from-literal=sentinel-username=sentinel > 12-sentinel-pass.yaml
	# 资源清单内容如下
---
apiVersion: v1
data:
  sentinel-password: c2VudGluZWw=
  sentinel-username: c2VudGluZWw=
kind: Secret
metadata:
  creationTimestamp: null
  name: yueyang-sentinel-password-secret
  namespace: yueyang-cloud

# step 46：创建资源
$ kubectl  create -f  12-sentinel-pass.yaml
secret/yueyang-sentinel-password-secret created

# step 47：查看资源
$ kubectl get -f 12-sentinel-pass.yaml
NAME                               TYPE     DATA   AGE
yueyang-sentinel-password-secret   Opaque   2      27s

3. 创建sentinel Pod

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
# step 48：配置资源清单
$ vim 13-sentinel-deploy.yaml
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: yueyang-sentinel-deploy
  name: yueyang-sentinel-deploy
  namespace: yueyang-cloud
spec:
  replicas: 1
  selector:
    matchLabels:
      app: yueyang-sentinel-deploy
  strategy: {}
  template:
    metadata:
      labels:
        app: yueyang-sentinel-deploy
    spec:
      containers:
      - image: registry.cn-hangzhou.aliyuncs.com/hujiaming/sentinel:1.8.6
        name: sentinel
        # 存活探针
#        livenessProbe:
        	# 使用http的get请求判断pod是否存活，请求8719端口的/clusterNode判断pod是否存活
#          httpGet:
#            path: /clusterNode
#            port: 8719
#            scheme: HTTP
          # 在pod初始化完毕20秒后再开始进行存活探针
#          initialDelaySeconds: 20
          # 之后每隔10秒检查一下应用是否存活
#          periodSeconds: 10
        ports:
          - containerPort: 8718
            name: dashboard
            protocol: TCP
          - containerPort: 8719
            name: api
            protocol: TCP
        env:
          # 引用configmap当中各类配置
          - name: XMX
            valueFrom:
              configMapKeyRef:
                key: xmx
                name: yueyang-sentinel-cm
          - name: XMS
            valueFrom:
              configMapKeyRef:
                key: xms
                name: yueyang-sentinel-cm
          - name: XMN
            valueFrom:
              configMapKeyRef:
                key: xmn
                name: yueyang-sentinel-cm
          - name: API_PORT
            valueFrom:
              configMapKeyRef:
                key: api-port
                name: yueyang-sentinel-cm
          - name: SERVER_PORT
            valueFrom:
              configMapKeyRef:
                key: server-port
                name: yueyang-sentinel-cm
          - name: JAVA_OPTION
            valueFrom:
              configMapKeyRef:
                key: java-option
                name: yueyang-sentinel-cm
          # 引用secret里面的用户名和密码
          - name: SENTINEL_USERNAME
            valueFrom:
              secretKeyRef:
                key: sentinel-username
                name: yueyang-sentinel-password-secret
          - name: SENTINEL_PASSWORD
            valueFrom:
              secretKeyRef:
                key: sentinel-password
                name: yueyang-sentinel-password-secret
        resources: {}

---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: yueyang-sentinel-deploy
  name: yueyang-sentinel-svc
  namespace: yueyang-cloud
spec:
  ports:
    - name: dashboard
      port: 8718
      protocol: TCP
      targetPort: 8718
      # nodePort: 30718
    - name: api
      port: 8719
      protocol: TCP
      targetPort: 8719
      # nodePort: 30719
  selector:
    app: yueyang-sentinel-deploy
  # ClusterIP, NodePort, LoadBalancer
  type: ClusterIP
1
2
3
4
5
6
7
8
9
10
11
12
# step 49：创建资源
$ kubectl create -f 13-sentinel-deploy.yaml
deployment.apps/yueyang-sentinel-deploy created
service/yueyang-sentinel-svc created

# step 50：查看资源
$ kubectl get -f 13-sentinel-deploy.yaml
NAME                                      READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/yueyang-sentinel-deploy   1/1     1            1           44s

NAME                           TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)             AGE
service/yueyang-sentinel-svc   ClusterIP   10.96.53.233   <none>        8718/TCP,8719/TCP   44s

4. 使用ingress 暴露sentinel

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
# step 51：配置资源清单
$ vim 14-sentinel-ingress.yaml
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  creationTimestamp: null
  name: yueyang-sentinel-ingress
  namespace: yueyang-cloud
spec:
  ingressClassName: nginx
  rules:
  - host: sentinel.tanke.love
    http:
      paths:
      - backend:
          service:
            name: yueyang-sentinel-svc
            port:
              number: 8718
        path: /
        pathType: Prefix

# step 52：创建资源
$ kubectl create -f 14-sentinel-ingress.yaml
ingress.networking.k8s.io/yueyang-sentinel-ingress created

# step 53：查看资源
$ kubectl get -f 14-sentinel-ingress.yaml
NAME                       CLASS   HOSTS                 ADDRESS        PORTS   AGE
yueyang-sentinel-ingress   nginx   sentinel.tanke.love   10.96.28.207   80      30s

# step 54：查看ingress 控制器svc
$ kubectl  get svc -n ingress-nginx

image-20240925004910592

浏览器访问：http://http://sentinel.tanke.love:30242/

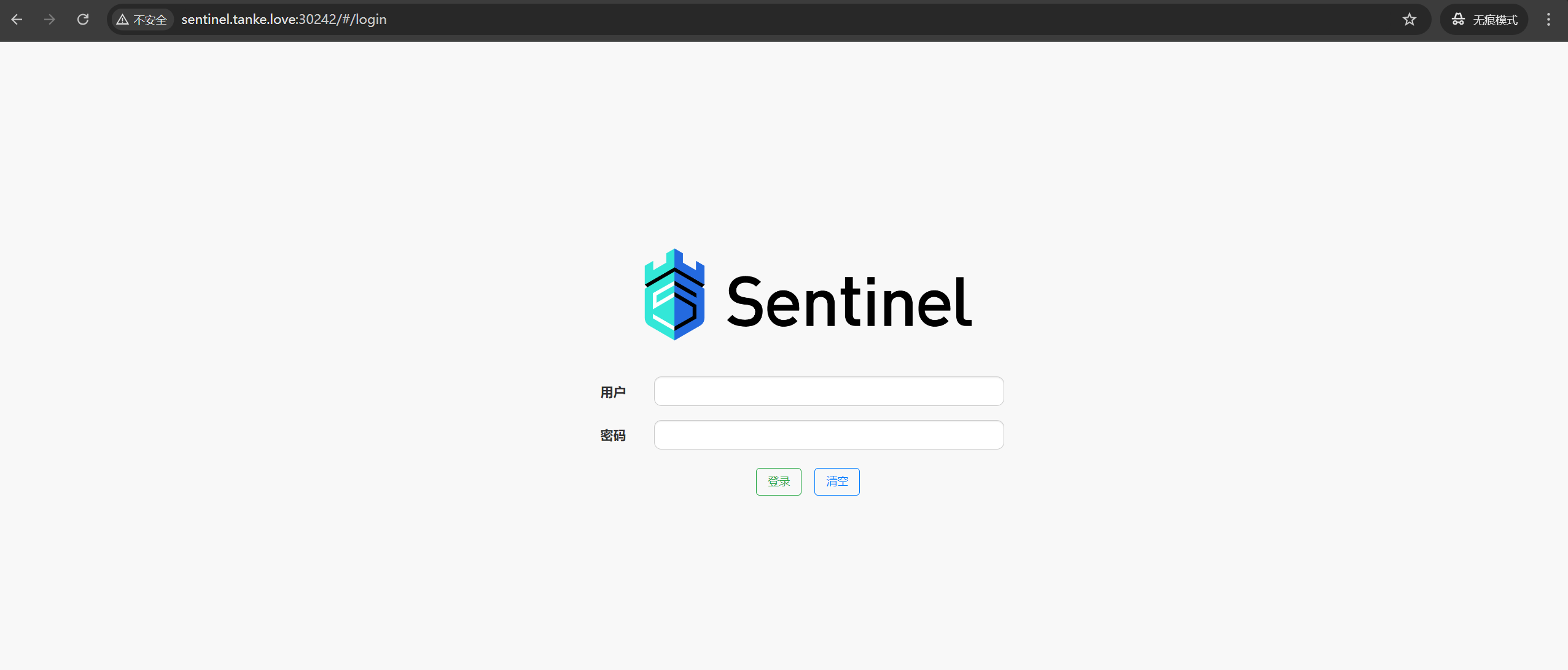

image-20240925004923912

账号密码均为：sentinel

六、部署file模块

1. 部署file Pod

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
# step 55：配置file 服务资源清单
$ vim 15-file-deploy.yaml
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: yueyang-file-pvc
  namespace: yueyang-cloud
spec:
  accessModes:
    - ReadWriteMany
  # 存储类类型，我们使用nfs
  storageClassName: "nfs-client"
  resources:
    requests:
        # 申请的容量，生产环境注意修改
      storage: 1Gi

---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: yueyang-file-deployment
  name: yueyang-file-deployment
  namespace: yueyang-cloud
spec:
  replicas: 1
  selector:
    matchLabels:
      app: yueyang-file-deployment
  strategy: { }
  template:
    metadata:
      labels:
        app: yueyang-file-deployment
    spec:
      containers:
        - env:
             # 运行时环境，引用一开始创建的configmap，值为prod
            - name: SPRING_PROFILES_ACTIVE
              valueFrom:
                configMapKeyRef:
                  name: spring-profile-cm
                  key: spring-profiles-active
            # 设置一些jvm调优参数
            - name: JAVA_OPTION
              value: "-Dfile.encoding=UTF-8 -XX:+UseParallelGC -XX:+PrintGCDetails -Xloggc:/var/log/devops-example.gc.log -XX:+HeapDumpOnOutOfMemoryError -XX:+DisableExplicitGC"
            - name: XMX
              value: "128m"
            - name: XMS
              value: "128m"
            - name: XMN
              value: "64m"
          image: registry.cn-hangzhou.aliyuncs.com/hujiaming-01/file:1.0.0
          name: file
          # 存活探针
          livenessProbe:
            # 发送http get请求到10020端口的/actuator/health路径检查pod是否健康
            httpGet:
              path: /actuator/health
              port: 10020
              scheme: HTTP
            # pod初始化完毕20秒之后再开始
            initialDelaySeconds: 20
            # 之后每10秒进行一次健康检查
            periodSeconds: 10
          ports:
            - containerPort: 10020
          resources: { }
          # 挂载上传文件的目录
          volumeMounts:
            - mountPath: /data/file
              name: file-data
      volumes:
        # 定义file-data，使用上一步创建的file模块的pvc
        - name: file-data
          persistentVolumeClaim:
            claimName: yueyang-file-pvc
1
2
3
4
5
6
7
8
9
10
11
12
# step 56：创建资源
$ kubectl create -f 15-file-deploy.yaml
persistentvolumeclaim/yueyang-file-pvc created
deployment.apps/yueyang-file-deployment created

# step 57：查看资源
$ kubectl get  -f 15-file-deploy.yaml
NAME                                     STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   AGE
persistentvolumeclaim/yueyang-file-pvc   Bound    pvc-233963b3-180c-4c7c-807d-78408f34e472   1Gi        RWX            nfs-client     78s

NAME                                      READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/yueyang-file-deployment   1/1     1            1           78s

2. nacos 验证file模块是否注册

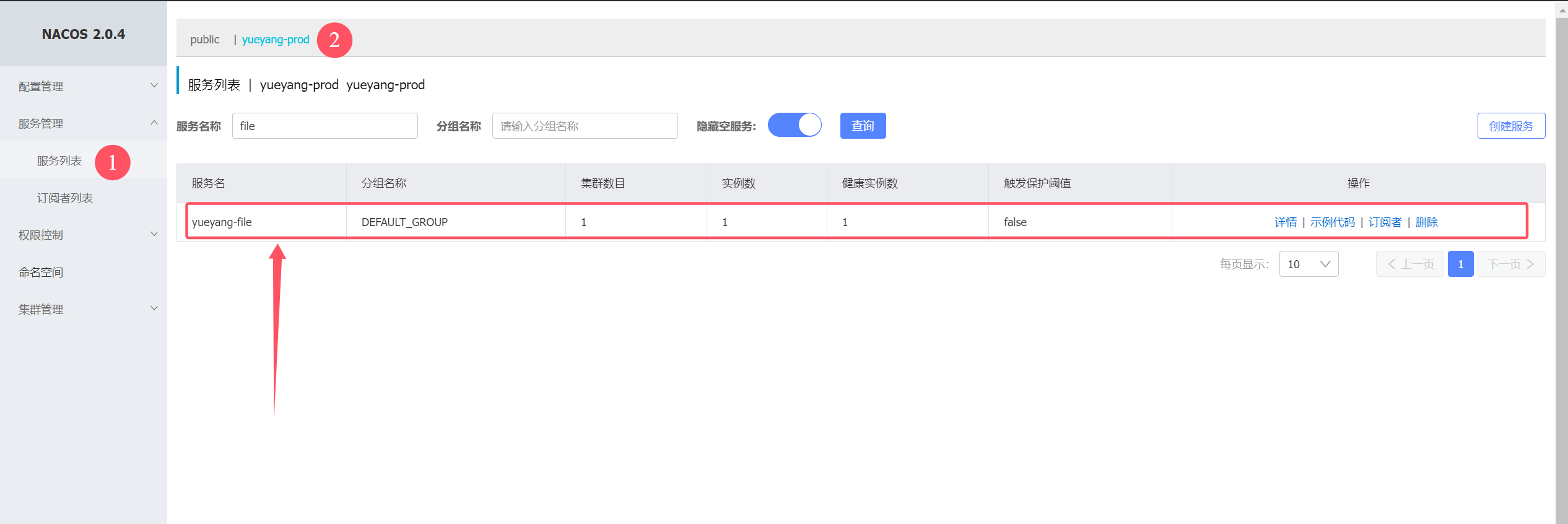

image-20240925010107104

七、gateway网关服务部署

1. 部署 gateway Pod

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
# step 58：创建资源清单
$ vim 16-gateway-deploy.yaml
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: yueyang-gateway-deployment
  name: yueyang-gateway-svc
  namespace: yueyang-cloud
spec:
  ports:
  - port: 8080
    protocol: TCP
    targetPort: 8080
  selector:
    app: yueyang-gateway-deployment
  type: ClusterIP

---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: yueyang-gateway-deployment
  name: yueyang-gateway-deployment
  namespace: yueyang-cloud
spec:
  replicas: 1
  selector:
    matchLabels:
      app: yueyang-gateway-deployment
  strategy: { }
  template:
    metadata:
      labels:
        app: yueyang-gateway-deployment
    spec:
      containers:
        - env:
           # 运行时环境，引用一开始创建的configmap，值为prod
            - name: SPRING_PROFILES_ACTIVE
              valueFrom:
                configMapKeyRef:
                  name: spring-profile-cm
                  key: spring-profiles-active
            # 设置一些jvm调优参数
            - name: JAVA_OPTION
              value: "-Dfile.encoding=UTF-8 -XX:+UseParallelGC -XX:+PrintGCDetails -Xloggc:/var/log/devops-example.gc.log -XX:+HeapDumpOnOutOfMemoryError -XX:+DisableExplicitGC"
            - name: XMX
              value: "128m"
            - name: XMS
              value: "128m"
            - name: XMN
              value: "64m"
          image: registry.cn-hangzhou.aliyuncs.com/hujiaming-01/gateway:1.0.0
          name: gateway
          # 存活探针
          livenessProbe:
            # 发送http get请求到8080端口的/actuator/health路径检查pod是否健康
            httpGet:
              path: /actuator/health
              port: 8080
              scheme: HTTP
            # pod初始化完毕20秒之后再开始
            initialDelaySeconds: 20
            # 之后每10秒进行一次健康检查
            periodSeconds: 10
          ports:
            - containerPort: 8080
          resources: { }
1
2
3
4
5
6
7
8
9
10
11
12
# step 59：创建资源
$ kubectl replace -f 16-gateway-deploy.yaml
service/yueyang-gateway-svc replaced
deployment.apps/yueyang-gateway-deployment replaced

# step 60：查看资源
$ kubectl get -f 16-gateway-deploy.yaml
NAME                          TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)    AGE
service/yueyang-gateway-svc   ClusterIP   10.96.230.51   <none>        8080/TCP   3s

NAME                                         READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/yueyang-gateway-deployment   1/1     1            1           3m44s

2. nacos 验证gateway是否注册

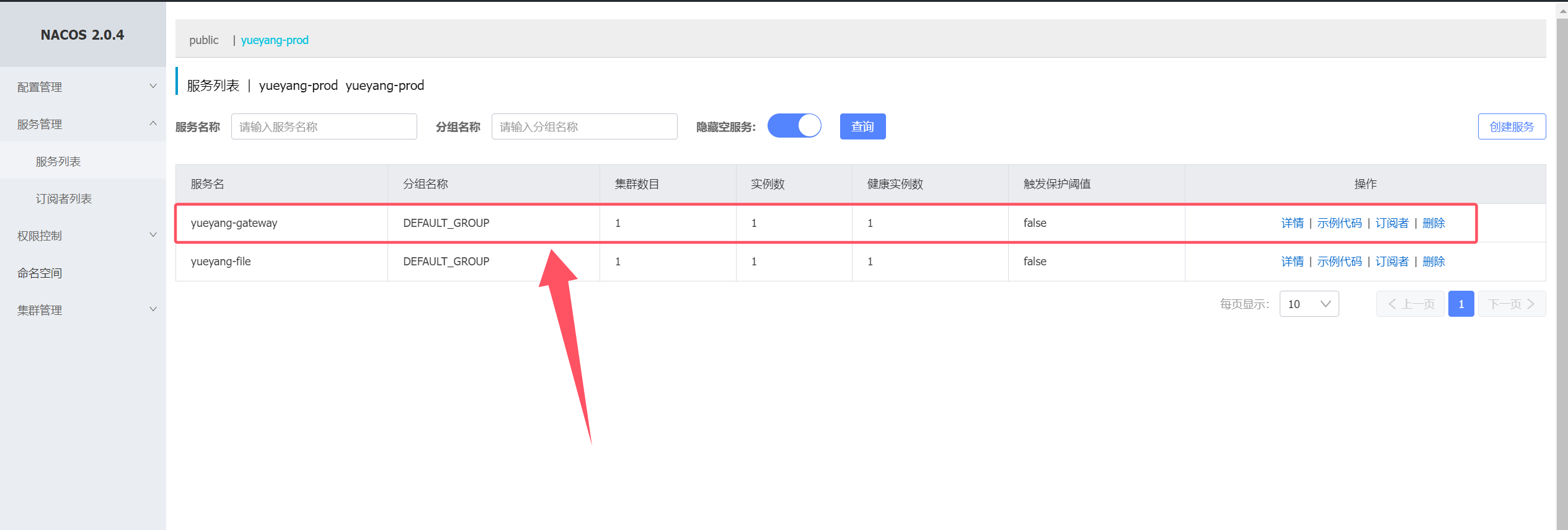

image-20240925010718408

八、部署system模块

1. 部署system Pod

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
# step 61：配置资源清单
$ vim 17-system-deploy.yaml
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: yueyang-system-deployment
  name: yueyang-system-svc
  namespace: yueyang-cloud
spec:
  ports:
  - port: 10050
    protocol: TCP
    targetPort: 10050
  selector:
    app: yueyang-system-deployment
  type: ClusterIP
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: yueyang-system-deployment
  name: yueyang-system-deployment
  namespace: yueyang-cloud
spec:
  replicas: 1
  selector:
    matchLabels:
      app: yueyang-system-deployment
  strategy: { }
  template:
    metadata:
      labels:
        app: yueyang-system-deployment
    spec:
      containers:
        - env:
                        # 运行时环境，引用一开始创建的configmap，值为prod
            - name: SPRING_PROFILES_ACTIVE
              valueFrom:
                configMapKeyRef:
                  name: spring-profile-cm
                  key: spring-profiles-active
            # 设置一些jvm调优参数
            - name: JAVA_OPTION
              value: "-Dfile.encoding=UTF-8 -XX:+UseParallelGC -XX:+PrintGCDetails -Xloggc:/var/log/devops-example.gc.log -XX:+HeapDumpOnOutOfMemoryError -XX:+DisableExplicitGC"
            - name: XMX
              value: "128m"
            - name: XMS
              value: "128m"
            - name: XMN
              value: "64m"
          image: registry.cn-hangzhou.aliyuncs.com/hujiaming-01/system:1.0.0
          name: system
          # 存活探针
          livenessProbe:
            # 发送http get请求到10050端口的/actuator/health路径检查pod是否健康
            httpGet:
              path: /actuator/health
              port: 10050
              scheme: HTTP
            # pod初始化完毕20秒之后再开始
            initialDelaySeconds: 20
            # 之后每10秒进行一次健康检查
            periodSeconds: 10
          ports:
            - containerPort: 10050
          resources: { }
1
2
3
4
5
6
7
8
9
10
11
12
# step 62：创建资源
$ kubectl create -f 17-system-deploy.yaml
service/yueyang-system-svc created
deployment.apps/yueyang-system-deployment created

# step 63：查看资源
$ kubectl get -f 17-system-deploy.yaml
NAME                         TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)     AGE
service/yueyang-system-svc   ClusterIP   10.96.208.84   <none>        10050/TCP   2m33s

NAME                                        READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/yueyang-system-deployment   1/1     1            1           2m34s

2. nacos 验证system 是否注册

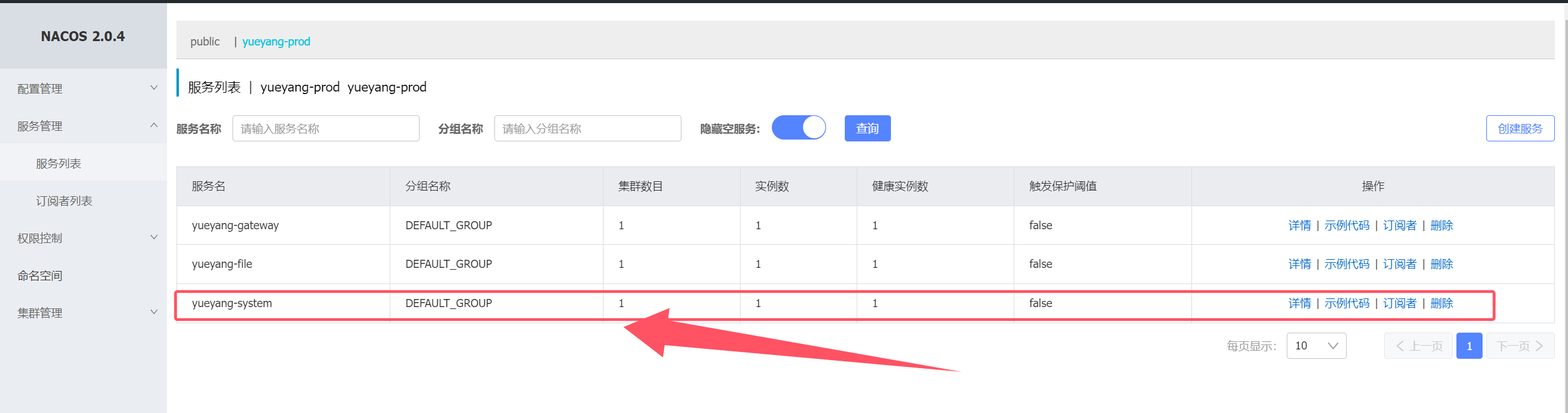

image-20240925011717635

九、部署auth 模块

1. 部署auth Pod

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
# step 64：配置资源清单
$ vim 18-auth-deploy.yaml
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: yueyang-auth-deployment
  name: yueyang-auth-svc
  namespace: yueyang-cloud
spec:
  ports:
  - port: 10050
    protocol: TCP
    targetPort: 10050
  selector:
    app: yueyang-auth-deployment
  type: ClusterIP
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: yueyang-auth-deployment
  name: yueyang-auth-deployment
  namespace: yueyang-cloud
spec:
  replicas: 1
  selector:
    matchLabels:
      app: yueyang-auth-deployment
  strategy: { }
  template:
    metadata:
      labels:
        app: yueyang-auth-deployment
    spec:
      containers:
        - env:
        		# 运行时环境，引用一开始创建的configmap，值为prod
            - name: SPRING_PROFILES_ACTIVE
              valueFrom:
                configMapKeyRef:
                  name: spring-profile-cm
                  key: spring-profiles-active
            # 设置一些jvm调优参数
            - name: JAVA_OPTION
              value: "-Dfile.encoding=UTF-8 -XX:+UseParallelGC -XX:+PrintGCDetails -Xloggc:/var/log/devops-example.gc.log -XX:+HeapDumpOnOutOfMemoryError -XX:+DisableExplicitGC"
            - name: XMX
              value: "128m"
            - name: XMS
              value: "128m"
            - name: XMN
              value: "64m"
          image: registry.cn-hangzhou.aliyuncs.com/hujiaming-01/auth:1.0.0
          name: auth
          # 存活探针
          livenessProbe:
            # 发送http get请求到10010端口的/actuator/health路径检查pod是否健康
            httpGet:
              path: /actuator/health
              port: 10010
              scheme: HTTP
            # pod初始化完毕20秒之后再开始
            initialDelaySeconds: 20
            # 之后每10秒进行一次健康检查
            periodSeconds: 10
          ports:
            - containerPort: 10010
          resources: { }
1
2
3
4
5
6
7
8
9
10
11
12
# step 65：创建资源
$ kubectl create -f 18-auth-deploy.yaml
service/yueyang-auth-svc created
deployment.apps/yueyang-auth-deployment created

# step 66：查看资源
$ kubectl get -f 18-auth-deploy.yaml
NAME                       TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)     AGE
service/yueyang-auth-svc   ClusterIP   10.96.254.105   <none>        10050/TCP   35s

NAME                                      READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/yueyang-auth-deployment   1/1     1            1           35s

2. nacos 验证auth是否注册

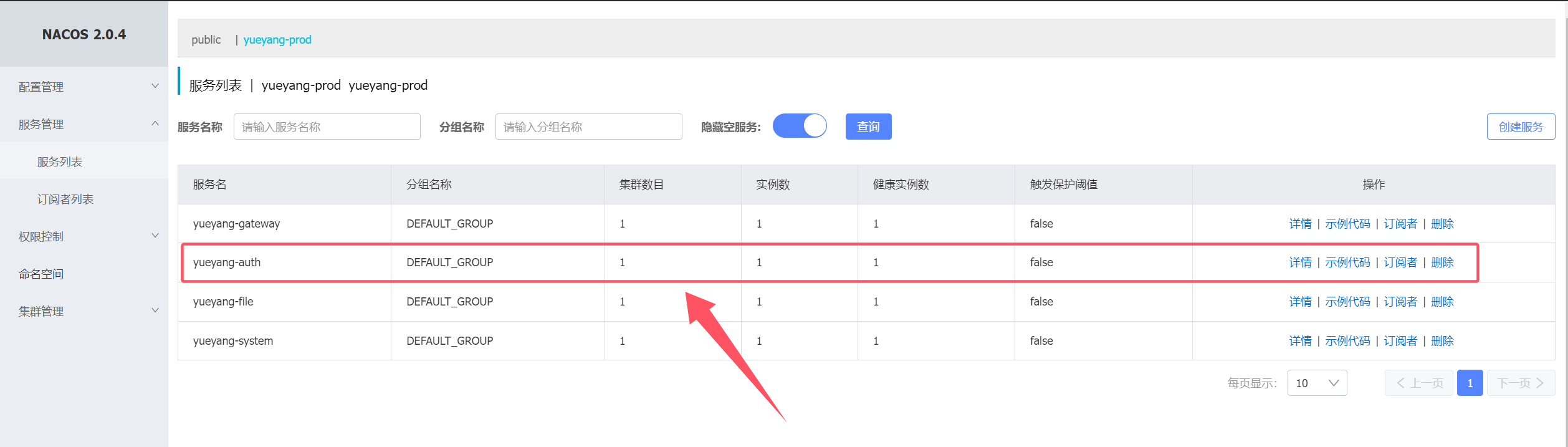

image-20240925012246632

十、部署前端应用

1. 部署前端Pod

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
# step 67：创建资源清单
$ vim 19-nginx-deploy.yaml
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: yueyang-ui-deployment
  name: yueyang-ui-svc
  namespace: yueyang-cloud
spec:
  ports:
  - port: 80
    protocol: TCP
    targetPort: 80
  selector:
    app: yueyang-ui-deployment
  type: ClusterIP

---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: yueyang-ui-deployment
  name: yueyang-ui-deployment
  namespace: yueyang-cloud
spec:
  replicas: 1
  selector:
    matchLabels:
      app: yueyang-ui-deployment
  strategy: { }
  template:
    metadata:
      labels:
        app: yueyang-ui-deployment
    spec:
      containers:
        - image: registry.cn-hangzhou.aliyuncs.com/hujiaming-01/ui:1.0.0
          name: ui
          # 存活探针
          livenessProbe:
          	# 使用http get请求80的根目录，查看是否存活
            httpGet:
              path: /
              port: 80
              scheme: HTTP
            # pod初始化完毕20秒后再进行存活检查
            initialDelaySeconds: 20
            # 之后每隔10秒检查一次
            periodSeconds: 10
          ports:
            - containerPort: 80
          resources: { }
1
2
3
4
5
6
7
8
9
10
11
12
# step 68：创建资源
$ kubectl create -f 19-nginx-deploy.yaml
service/yueyang-ui-svc created
deployment.apps/yueyang-ui-deployment created

# step 69：查看资源
$ kubectl get -f 19-nginx-deploy.yaml
NAME                     TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)   AGE
service/yueyang-ui-svc   ClusterIP   10.96.45.221   <none>        80/TCP    24s

NAME                                    READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/yueyang-ui-deployment   1/1     1            1           24s

2. 使用ingress 暴露前端服务（无法正常使用，需要修改前端svc的类型为NodePort）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
# step 70：配置资源清单
$ vim 20-nginx-ingress.yaml
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  creationTimestamp: null
  name: yueyang-ui-ingress
  namespace: yueyang-cloud
spec:
  ingressClassName: nginx
  rules:
  - host: rouyi.tanke.love
    http:
      paths:
      - backend:
          service:
            name: yueyang-ui-svc
            port:
              number: 80
        path: /
        pathType: Prefix
1
2
3
4
5
6
7
8
9
10
11
# step 71：创建资源
$ kubectl  create -f 20-nginx-ingress.yaml
ingress.networking.k8s.io/yueyang-ui-ingress created

# step 72：查看资源
$ kubectl get -f 20-nginx-ingress.yaml
NAME                 CLASS   HOSTS              ADDRESS        PORTS   AGE
yueyang-ui-ingress   nginx   rouyi.tanke.love   10.96.28.207   80      61s

# step 73：查看ui svc
$ kubectl get svc -n yueyang-cloud

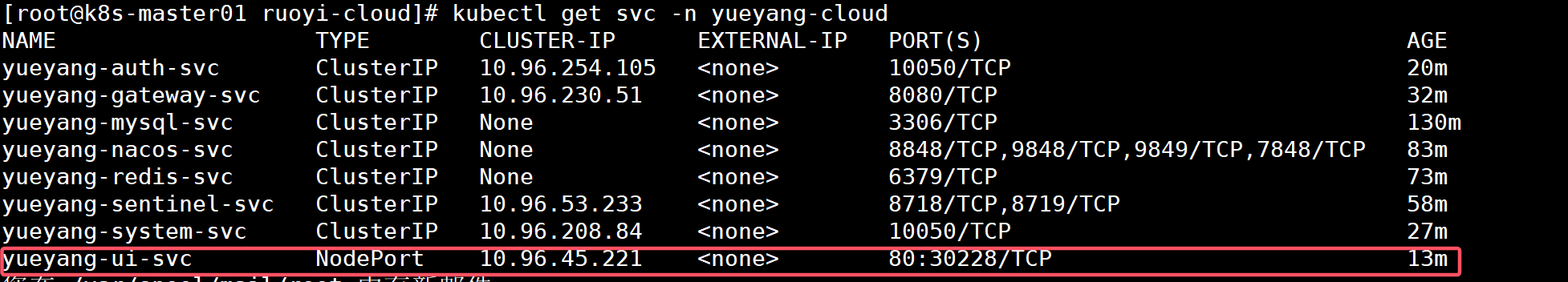

image-20240925014138882

1
2
# step 74：修改svc 类型为NodePort
$ kubectl edit svc yueyang-ui-svc  -n yueyang-cloud

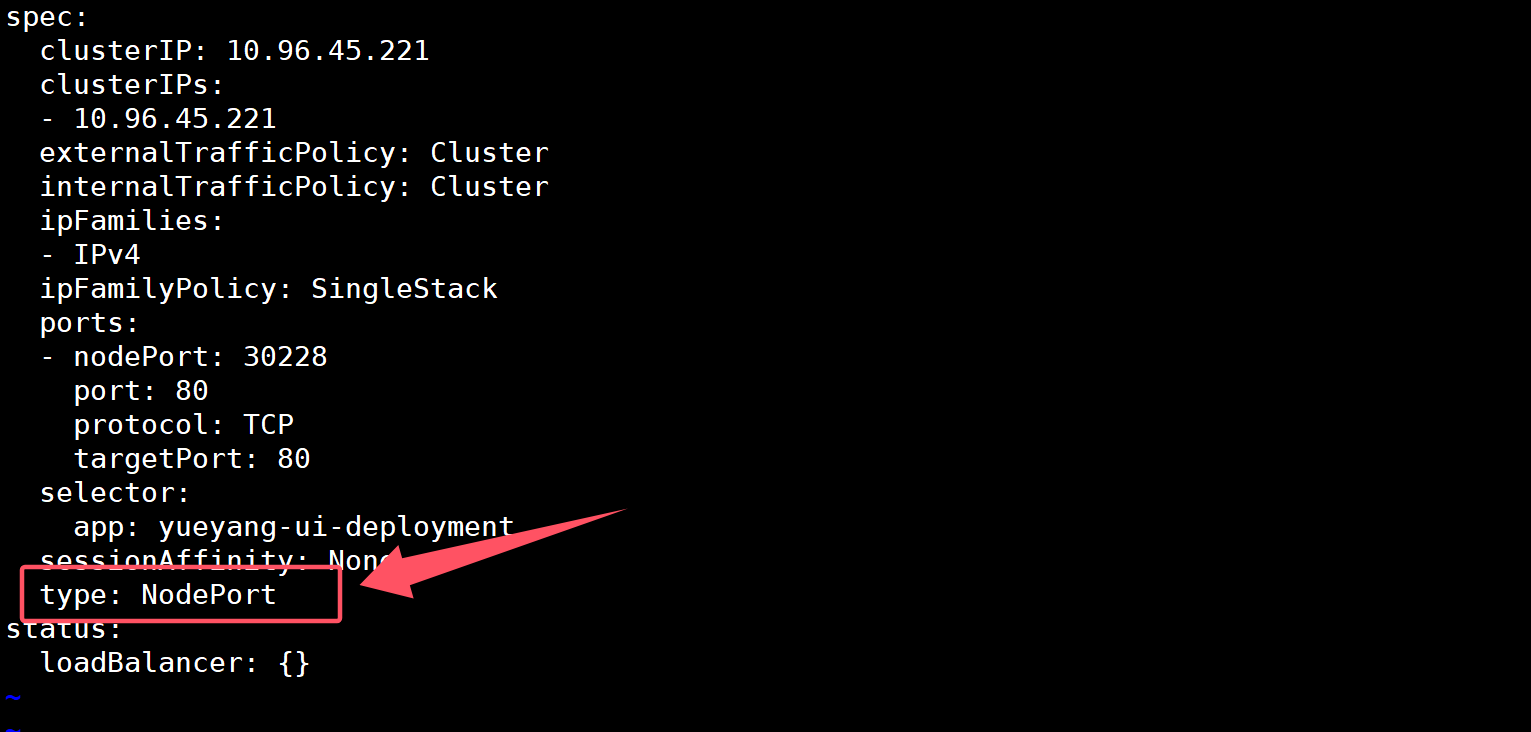

image-20240925014238526

1
2
# step 75：查看svc NodePort端口
$ kubectl get svc -n yueyang-cloud

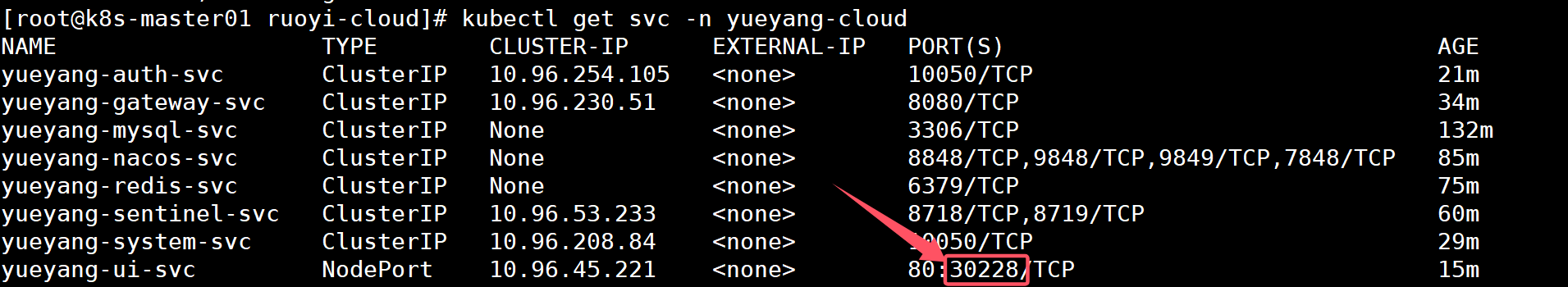

image-20240925014339109

浏览器访问http://宿主机IP+30228

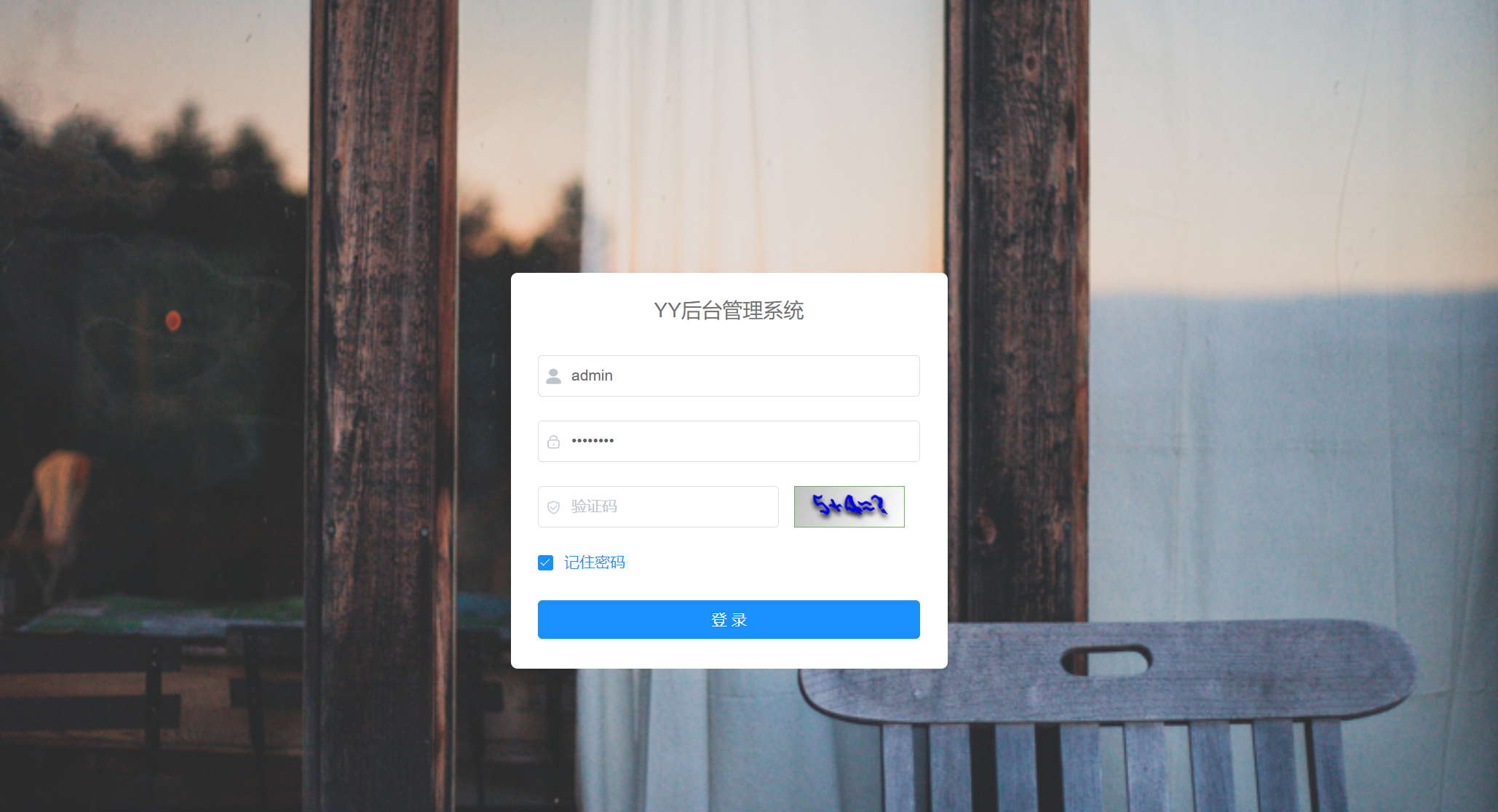

image-20240925014436646

十一、部署Job 模块

1. 部署job模块 Pod

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
# step 76：配置资源清单
$ vim 21-job-deploy.yaml
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: yueyang-job-deployment
  name: yueyang-job-svc
  namespace: yueyang-cloud
spec:
  ports:
  - port: 80
    protocol: TCP
    targetPort: 80
  selector:
    app: yueyang-job-deployment
  type: ClusterIP
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: yueyang-job-deployment
  name: yueyang-job-deployment
  namespace: yueyang-cloud
spec:
  replicas: 1
  selector:
    matchLabels:
      app: yueyang-job-deployment
  strategy: { }
  template:
    metadata:
      labels:
        app: yueyang-job-deployment
    spec:
    	# 拉取镜像的secret
      containers:
        - env:
        		# 运行时环境，引用一开始创建的configmap，值为prod
            - name: SPRING_PROFILES_ACTIVE
              valueFrom:
                configMapKeyRef:
                  name: spring-profile-cm
                  key: spring-profiles-active
            # 设置一些jvm调优参数
            - name: JAVA_OPTION
              value: "-Dfile.encoding=UTF-8 -XX:+UseParallelGC -XX:+PrintGCDetails -Xloggc:/var/log/devops-example.gc.log -XX:+HeapDumpOnOutOfMemoryError -XX:+DisableExplicitGC"
            - name: XMX
              value: "1g"
            - name: XMS
              value: "1g"
            - name: XMN
              value: "512m"
          image: registry.cn-hangzhou.aliyuncs.com/hujiaming-01/job:1.0.0
          name: job
          # 存活探针
#          livenessProbe:
            # 发送http get请求到10040端口的/actuator/health路径检查pod是否健康
#            httpGet:
#              path: /actuator/health
#              port: 10040
#              scheme: HTTP
            # pod初始化完毕20秒之后再开始
#            initialDelaySeconds: 20
            # 之后每10秒进行一次健康检查
#            periodSeconds: 10
          ports:
            - containerPort: 10040
          resources: { }
1
2
3
4
5
6
7
8
9
10
11
12
13
# step 77：创建资源
$ kubectl create -f 21-job-deploy.yaml
service/yueyang-job-svc created
deployment.apps/yueyang-job-deployment created


# step 78：查看资源
$ kubectl get -f 21-job-deploy.yaml
NAME                      TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)   AGE
service/yueyang-job-svc   ClusterIP   10.96.37.44   <none>        80/TCP    39s

NAME                                     READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/yueyang-job-deployment   1/1     1            1           39s

2. nacos 验证job模块是否注册成功

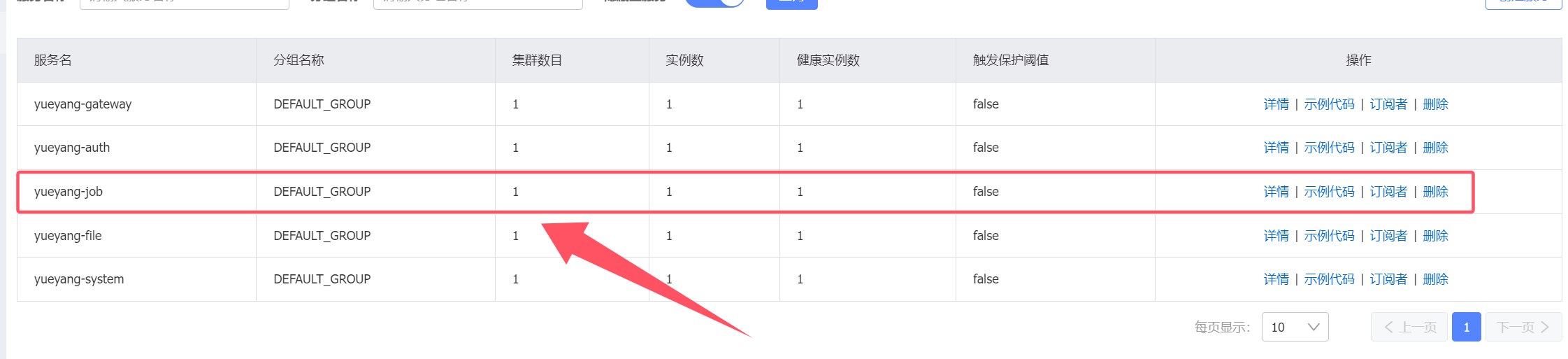

image-20240925015037157

3. 若依前端界面查看定时任务模块是否加载成功

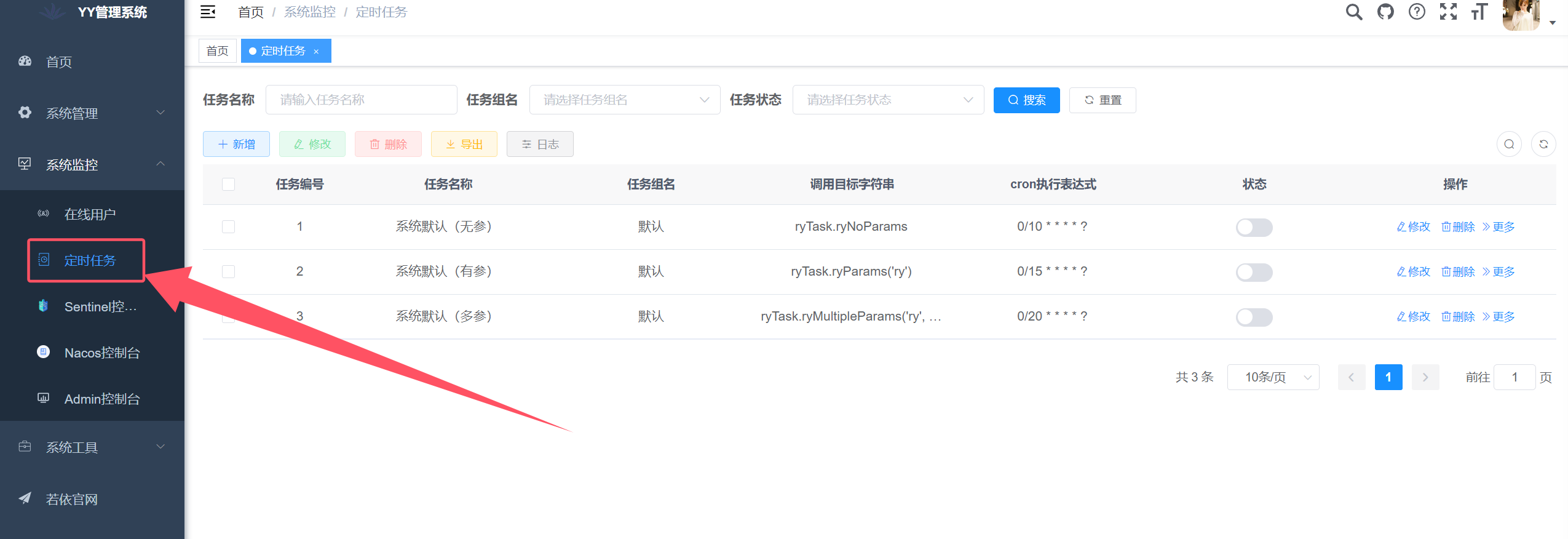

image-20240925015243793

十二、部署gen 模块

1. 部署gen Pod

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
# step 79：配置资源清单
$ vim 22-gen-deploy.yaml
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: yueyang-gen-deployment
  name: yueyang-gen-svc
  namespace: yueyang-cloud
spec:
  ports:
  - port: 80
    protocol: TCP
    targetPort: 80
  selector:
    app: yueyang-gen-deployment
  type: ClusterIP

---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: yueyang-gen-deployment
  name: yueyang-gen-deployment
  namespace: yueyang-cloud
spec:
  replicas: 1
  selector:
    matchLabels:
      app: yueyang-gen-deployment
  strategy: { }
  template:
    metadata:
      labels:
        app: yueyang-gen-deployment
    spec:
    	# 拉取镜像的secret
      imagePullSecrets:
        - name: yueyang-image-account-secret
      containers:
        - env:
        		# 运行时环境，引用一开始创建的configmap，值为prod
            - name: SPRING_PROFILES_ACTIVE
              valueFrom:
                configMapKeyRef:
                  name: spring-profile-cm
                  key: spring-profiles-active
            # 设置一些jvm调优参数
            - name: JAVA_OPTION
              value: "-Dfile.encoding=UTF-8 -XX:+UseParallelGC -XX:+PrintGCDetails -Xloggc:/var/log/devops-example.gc.log -XX:+HeapDumpOnOutOfMemoryError -XX:+DisableExplicitGC"
            - name: XMX
              value: "1g"
            - name: XMS
              value: "1g"
            - name: XMN
              value: "512m"
          image: registry.cn-hangzhou.aliyuncs.com/hujiaming-01/gen:1.0.0
          name: gen
          # 存活探针
#          livenessProbe:
            # 发送http get请求到10030端口的/actuator/health路径检查pod是否健康
#           httpGet:
#              path: /actuator/health
#              port: 10030
#              scheme: HTTP
            # pod初始化完毕20秒之后再开始
#            initialDelaySeconds: 20
            # 之后每10秒进行一次健康检查
#            periodSeconds: 10
          ports:
            - containerPort: 10030
          resources: { }
1
2
3
4
5
6
7
8
9
10
11
12
# step 80：部署资源
$ kubectl create -f 22-gen-deploy.yaml
service/yueyang-gen-svc created
deployment.apps/yueyang-gen-deployment created

# step 81：查看资源
$ kubectl get -f 22-gen-deploy.yaml
NAME                      TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)   AGE
service/yueyang-gen-svc   ClusterIP   10.96.21.87   <none>        80/TCP    39s

NAME                                     READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/yueyang-gen-deployment   1/1     1            1           39s

2. nacos 验证gen模块是否注册

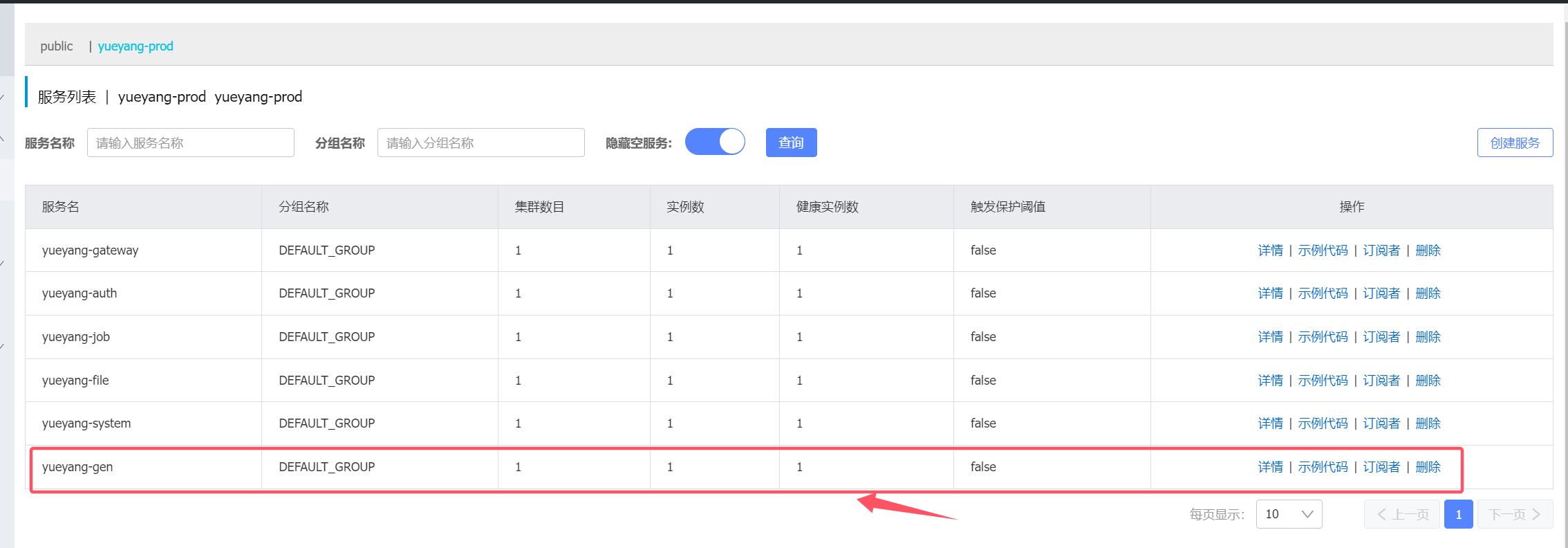

image-20240925020010054

3. 若依前端验证代码生成模块是否可用

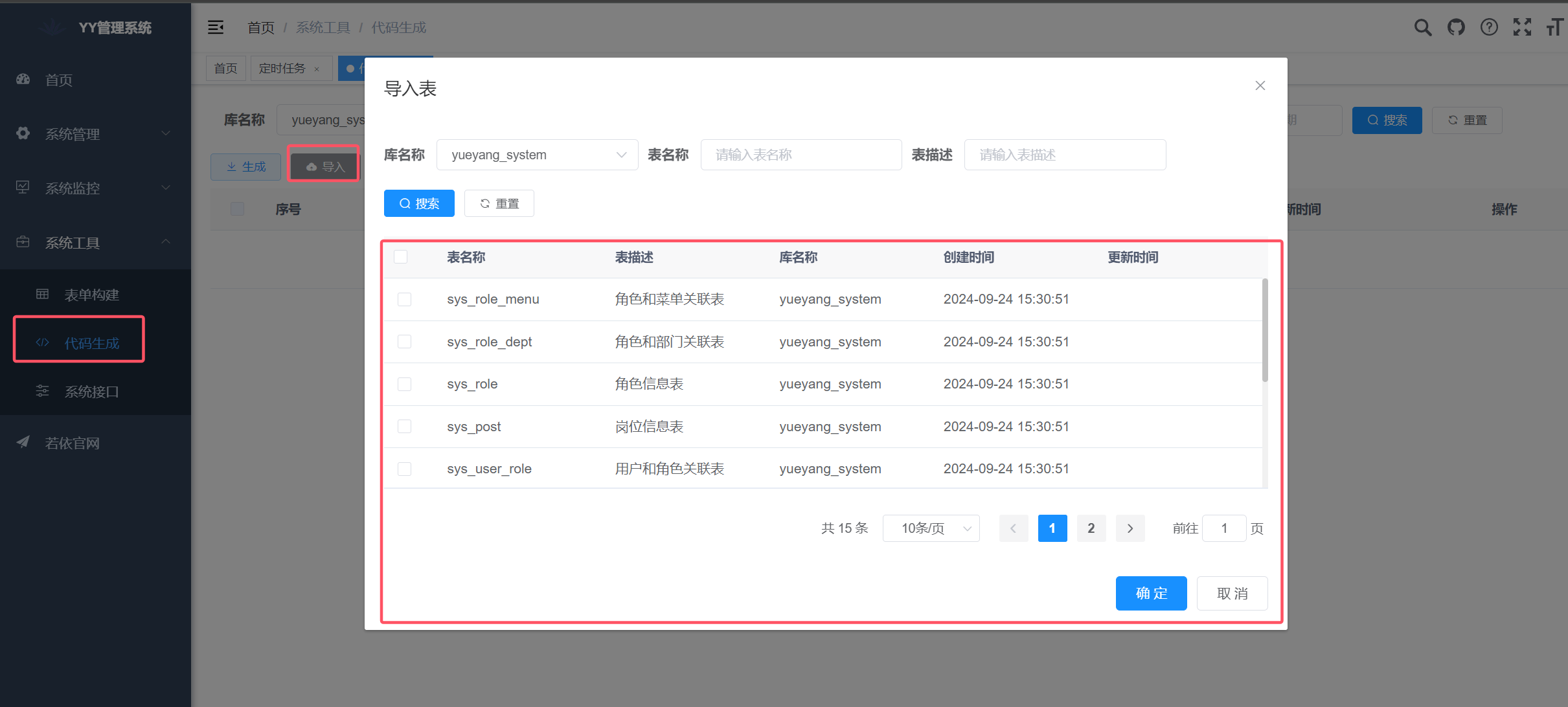

image-20240925020210036

十三、部署monitor模块

1. 部署monitor Pod

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
# step 82：配置资源呢清单
$ vim 23-monitor-deploy.yaml
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: yueyang-monitor-deployment
  name: yueyang-monitor-svc
  namespace: yueyang-cloud
spec:
  ports:
    - port: 8088
      protocol: TCP
      targetPort: 8088
  selector:
    app: yueyang-monitor-deployment
  type: ClusterIP

---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: yueyang-monitor-deployment
  name: yueyang-monitor-deployment
  namespace: yueyang-cloud
spec:
  replicas: 1
  selector:
    matchLabels:
      app: yueyang-monitor-deployment
  strategy: { }
  template:
    metadata:
      labels:
        app: yueyang-monitor-deployment
    spec:
      containers:
        - env:
        		# 运行时环境，引用一开始创建的configmap，值为prod
            - name: SPRING_PROFILES_ACTIVE
              valueFrom:
                configMapKeyRef:
                  name: spring-profile-cm
                  key: spring-profiles-active
            # 设置一些jvm调优参数
            - name: JAVA_OPTION
              value: "-Dfile.encoding=UTF-8 -XX:+UseParallelGC -XX:+PrintGCDetails -Xloggc:/var/log/devops-example.gc.log -XX:+HeapDumpOnOutOfMemoryError -XX:+DisableExplicitGC"
            - name: XMX
              value: "1g"
            - name: XMS
              value: "1g"
            - name: XMN
              value: "512m"
          image: registry.cn-hangzhou.aliyuncs.com/hujiaming-01/monitor:1.0.0
          name: monitor
          # 存活探针
#          livenessProbe:
            # 发送http get请求到8088端口的/actuator/health路径检查pod是否健康
#            httpGet:
#              path: /actuator/health
#              port: 8088
#              scheme: HTTP
            # pod初始化完毕20秒之后再开始
#            initialDelaySeconds: 20
            # 之后每10秒进行一次健康检查
#            periodSeconds: 10
          ports:
            - containerPort: 8088
          resources: { }
1
2
3
4
5
6
7
8
9
10
11
12
# step 83：创建资源
$ kubectl create -f 23-monitor-deploy.yaml
service/yueyang-monitor-svc created
deployment.apps/yueyang-monitor-deployment created

# step 84：查看资源
$ kubectl get -f 23-monitor-deploy.yaml
NAME                          TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)    AGE
service/yueyang-monitor-svc   ClusterIP   10.96.120.182   <none>        8088/TCP   47s

NAME                                         READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/yueyang-monitor-deployment   1/1     1            1           47s

2. nacos 验证monitor 是否注册

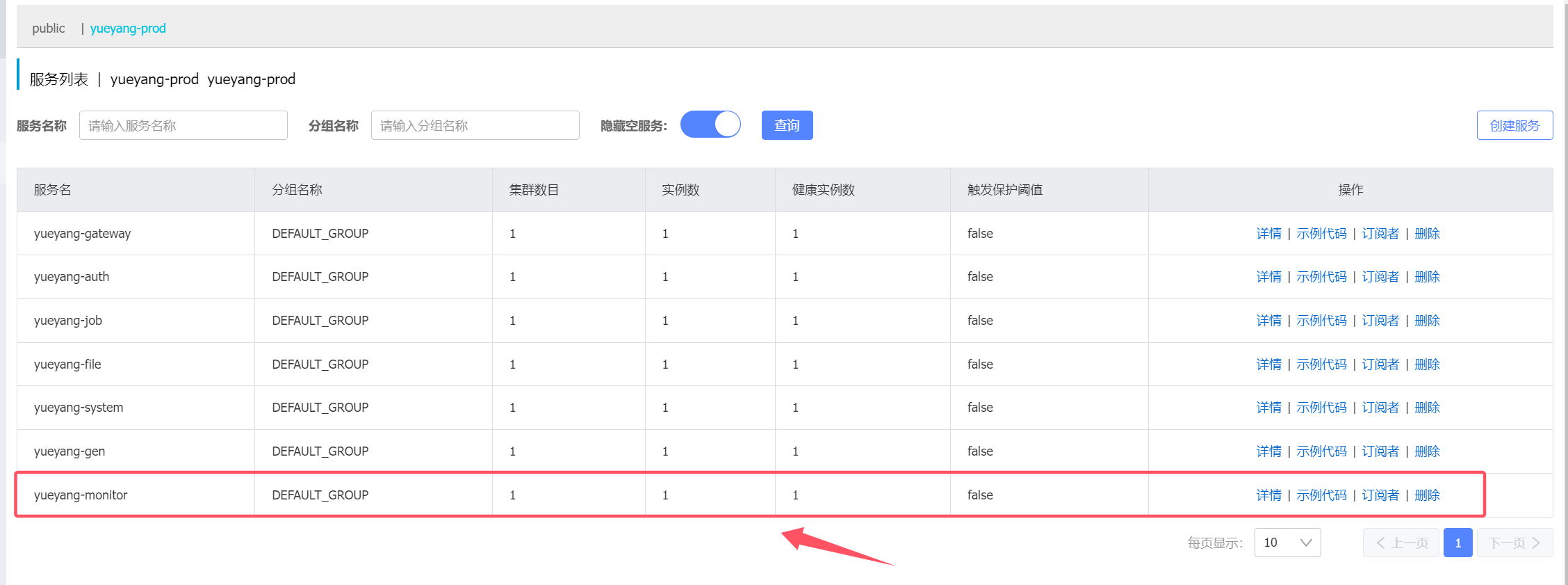

image-20240925020731221

3. 设置svc NodePort类型 暴露monitor服务

1
2
# step 85：修改svc 类型
$ kubectl edit svc  yueyang-monitor-svc -n yueyang-cloud

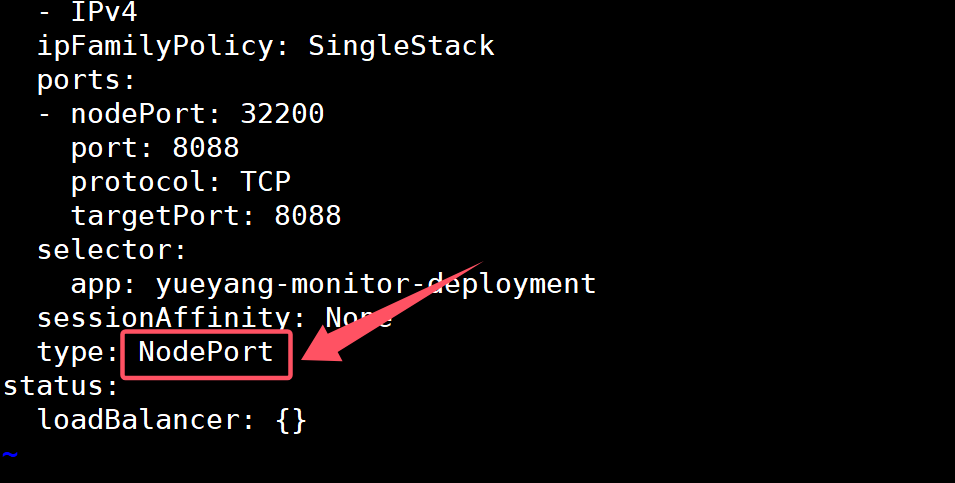

image-20240925021851440

1
2
# step 86：查看svc
$ kubectl get svc -n yueyang-cloud

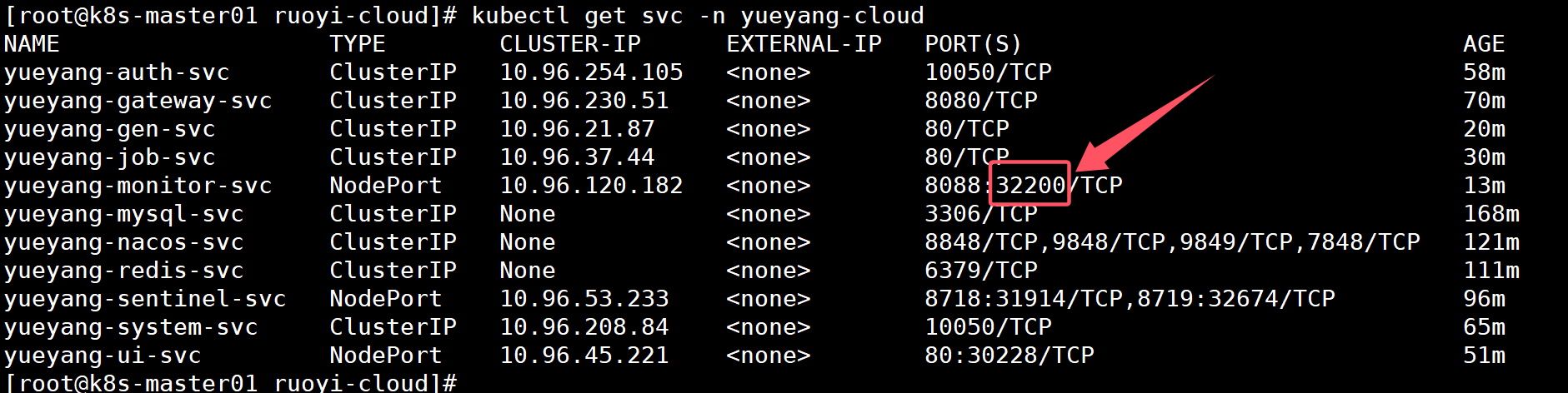

image-20240925021952232

浏览器访问：http://192.168.174.30:32200

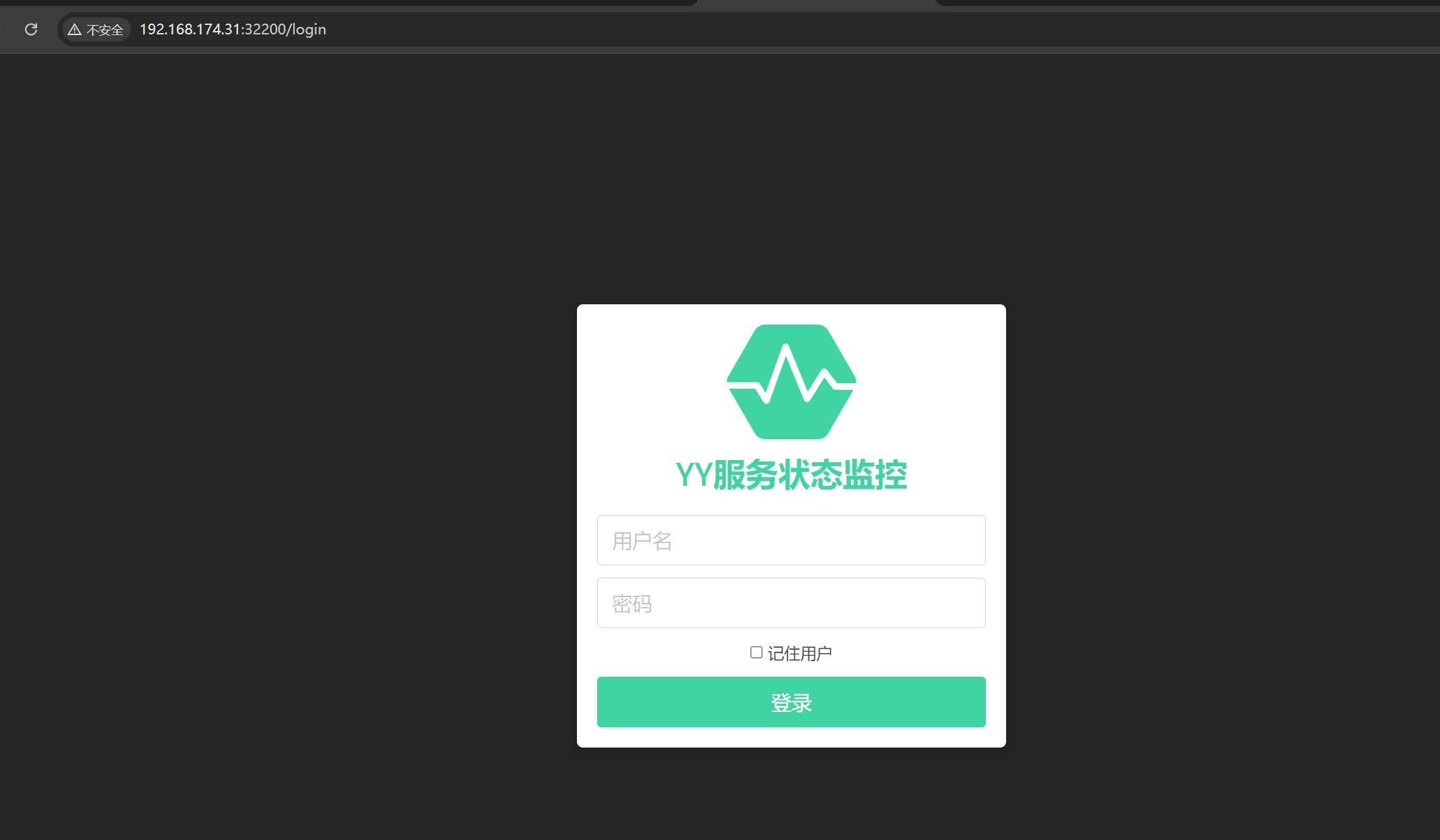

image-20240925022032439

用户名：xiaohh 密码：123456

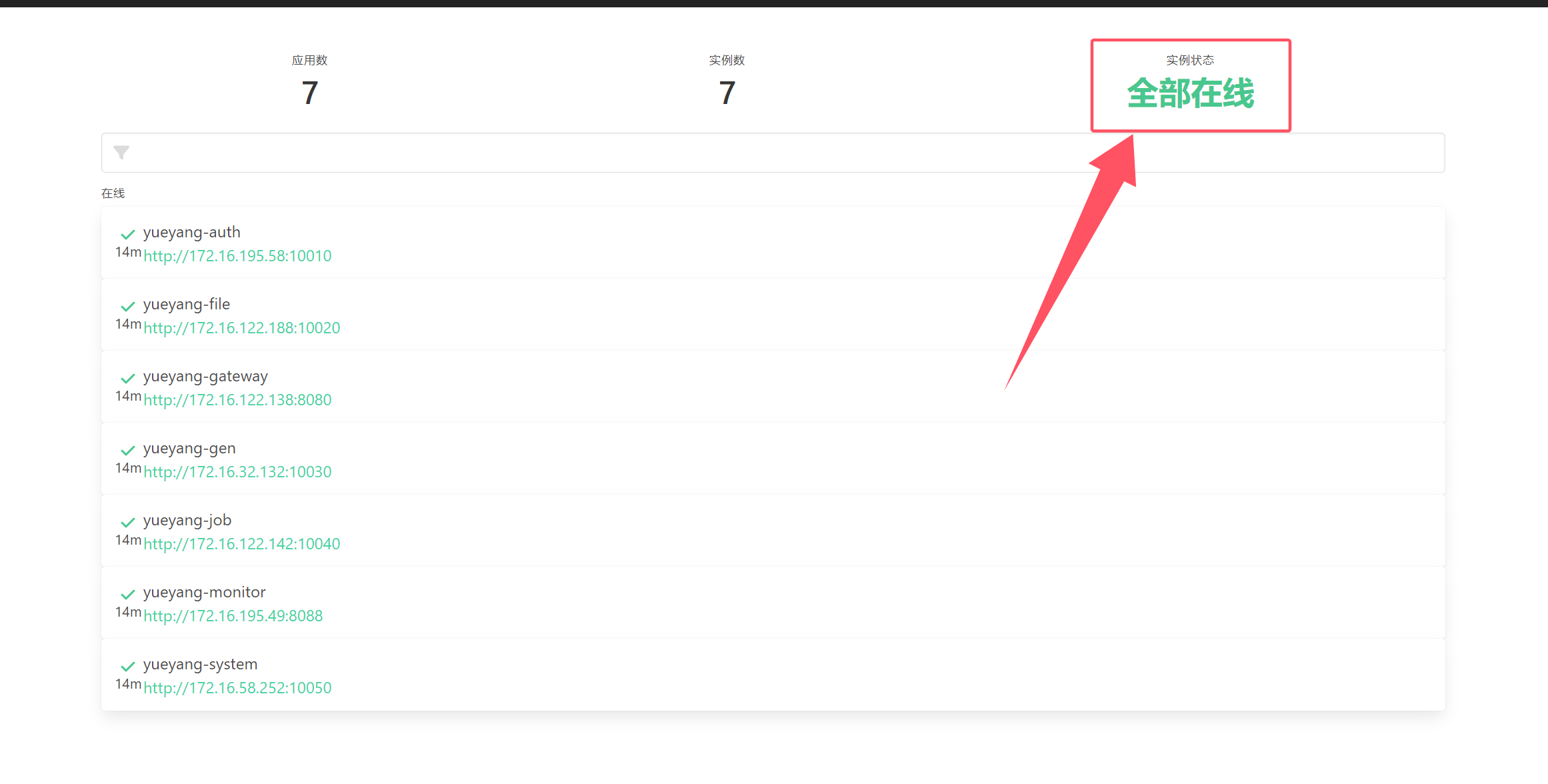

image-20240925022124720
